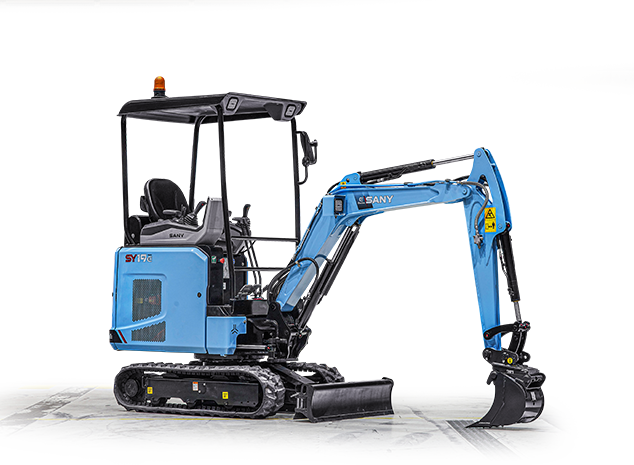

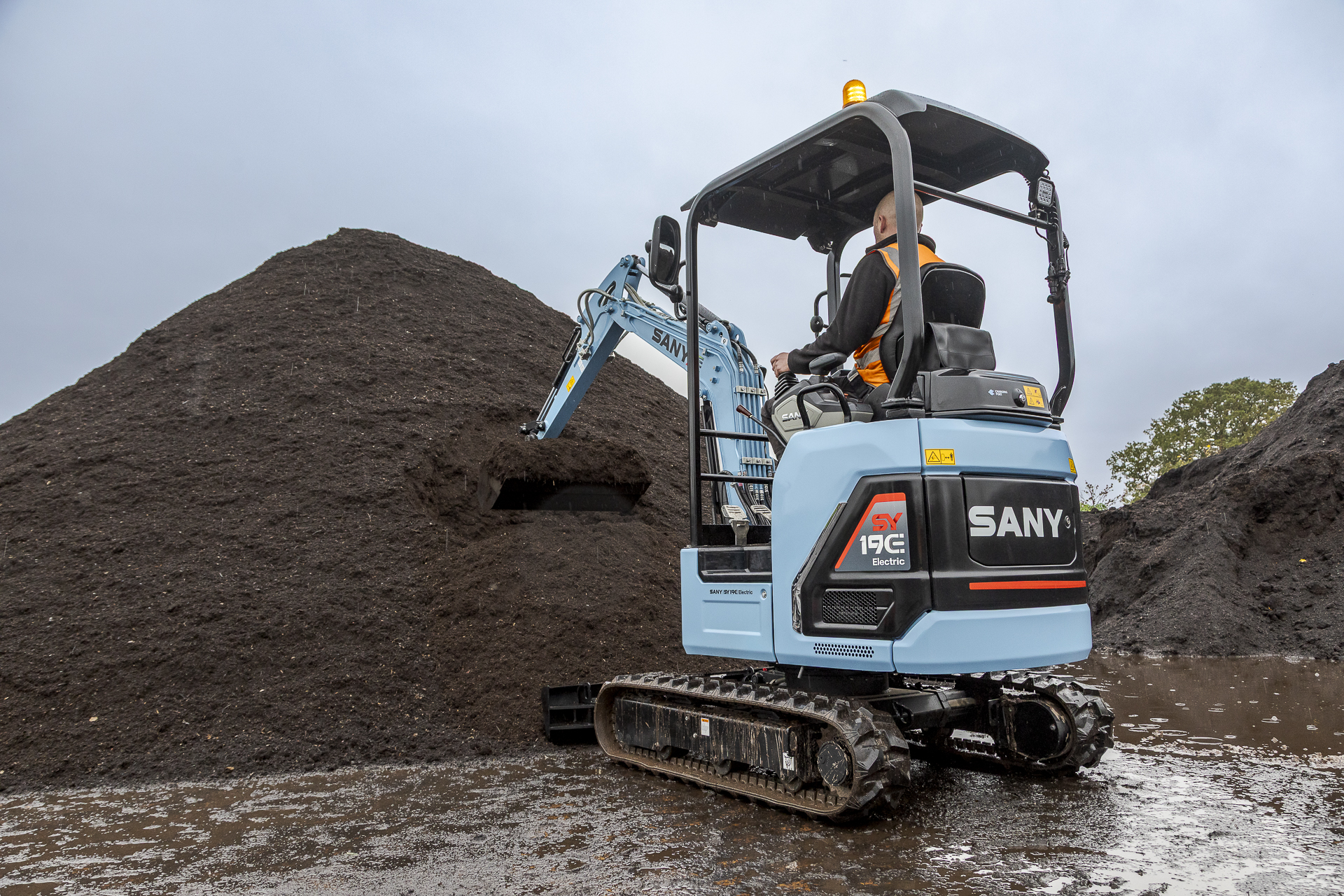

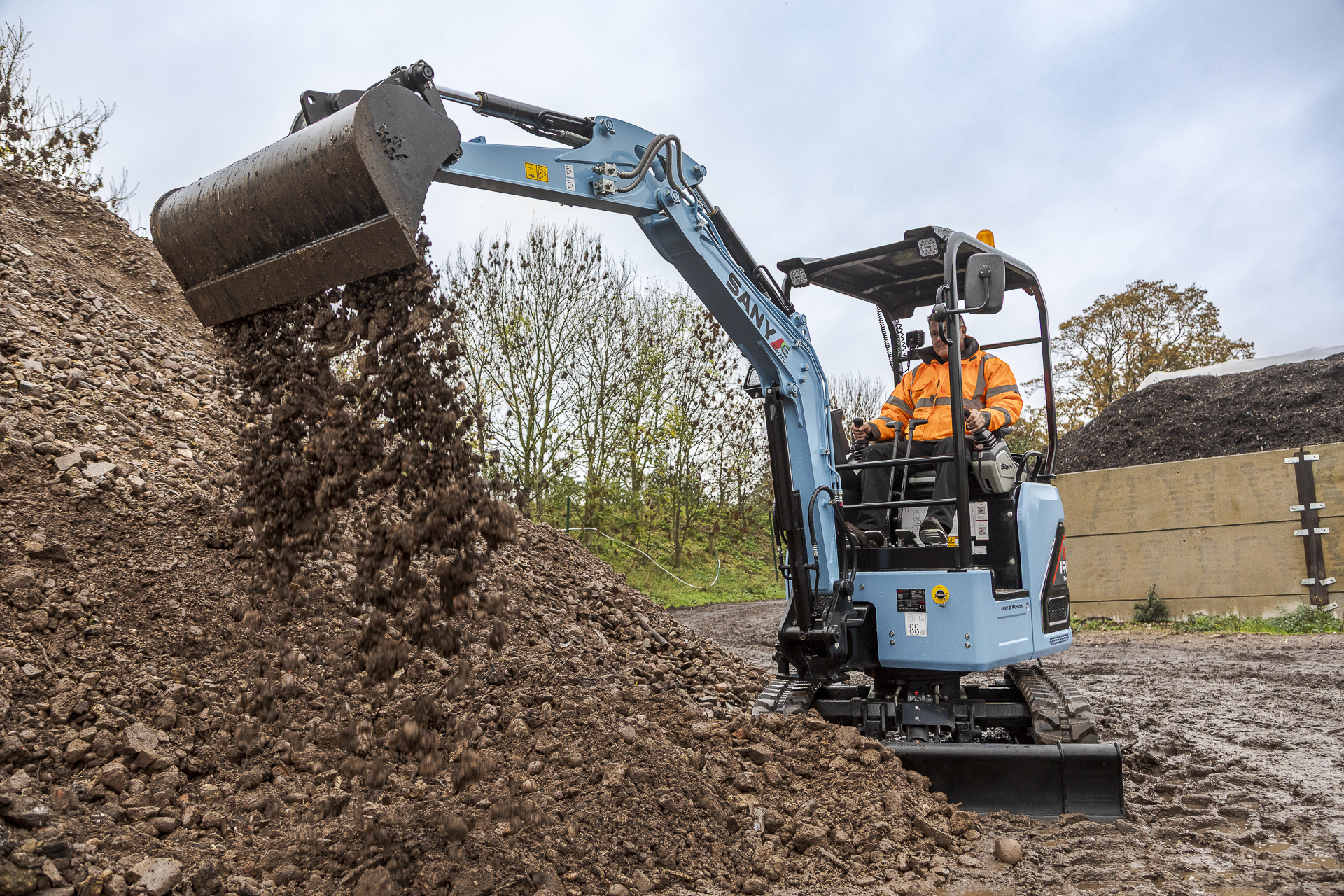

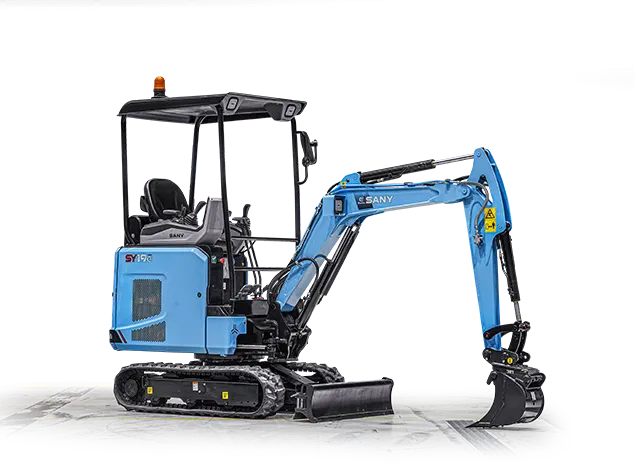

The SY19E is SANY’s first electric mini excavator! As well as zero emissions and considerably lower noise levels, the compact electric SY19E is equipped with a lithium iron phosphate (cobalt free) battery which allows for faster, safer and more efficient charging as well as a significantly longer battery life to reduce total cost of ownership. Featuring a single automotive standard charging socket, the machine offers a fully flexible charging solution that includes a fast charge option of 1.5 hours, without the need to purchase any additional equipment.
CHARGE ANYWHERE
Fully flexible automotive charging solution. No Extra Charge.
CHARGE FASTER
Fast charge option. No Extra Charge.
WORK LONGER
Long life battery. No Extra Charge.
GOT YOU COVERED
Industry leading 5-year warranty. No Extra Charge.
Interested in this machine?
Please complete the form below.
PERFORMANCE
Equipped with a state-of-the-art battery, efficient load-sensing hydraulic system and with multiple charging options the SY19E guarantees total flexibility on site.
+ Fully electric with zero emissions to allow for cleaner working and increases onsite flexibility to include indoor working, out of hours projects, urban and emissions sensitive areas
+ Fitted with a Lithium Iron Phosphate (cobalt free) battery, therefore less toxic and more environmentally friendly
+ Fully flexible, automotive standard charging socket provides 3 charging options as standard – DC fast charge (1.5 hours), 360v industrial (2.5 hours) 240v domestic (9 hours)
+ Fast charge at any automotive fast charge station i.e. petrol stations, hotel car parks.
+ Work for longer with up to 6 hours run time off a single charge (depending on application and temperature conditions)
+ Long battery life reduces total cost of ownership and increases residual value
+ Light weight and compact dimensions for easy transportation and manoeuvrability on site
+ Expanding undercarriage (980 – 1350mm) for applications that require maximum versatility
+ Load sensing hydraulics to maximise on performance
+ 100% steel bodywork for maximum protection and reduced cost of ownership
+ Hammer and bi-directional pipework as standard for maximum versatility of attachments
SAFETY
The SY19E is equipped with a number of safety features, all included as standard.
+ ROPS/TOPS certified canopy for safe operation
+ Optimal visibility for increased on site safety
+ Battery disconnect switch and emergency stop button
+ Fitted with a nitrogen accumulator, in case of an Emergency (loss of power) all equipment can be lowered
+ Travel alarm and green beacon to increase visibility, attract attention and ensure safety
OPERATOR COMFORT
With the SY19E operators can look forward to maximum comfort and easy operation.
+ Reduced noise levels of 66(dBA) for the operator and 83(dBA) outside the machine to improve driver comfort and aid clearer communication on site
+ Simplified charging solution for the operator with one single charge point and less cabling/equipment to carry
+ Responsive and precise controls
+ Ergonomic and comfortable operator’s seat with adjustable armrests
+ Clear instrumentation and large high resolution 7″ colour display
+ Keyless push start/stop function with password protection
+ LED work lights positioned on the front and boom for maximum visibility in low light conditions
SERVICE
+ Easy access to all maintenance points
+ Fully electric drive with a reduced number of serviceable machine parts, reduces maintenance downtime and servicing costs by up to 80%
+ The maintenance free lithium iron phosphate battery equipped with BMS (battery management system) and thermal management ensures battery life and quality during operation and charging
SECURITY
+ Registered and protected with the CESAR Datatag Scheme (the premier initiative against equipment theft) and CESAR ECV for quick and easy verification of emissions category
+ EVI telematics with built in tracker for complete peace of mind
WARRANTY
+ 5-year/5000 hour warranty as standard (Terms and Conditions apply)
SPECIFICATIONS
| BATTERY | |
| Battery type | Lithium iron phosphate battery (cobalt free) |
| Rated voltage | 358 v |
| Rated battery capacity | 82 Ah |
| Run time | 3 – 7 hrs |
| Charge time | DC 1 hr / Industrial (360v) 2.5hrs / Domestic (240v) 10hrs |
| DIMENSIONS | |
| Transport length | 3,624 mm |
| Transport width | 980/1,350 mm |
| Transport height | 2,410 mm |
| Top width | 980 mm |
| Blade height | 270 mm |
| Standard track pad width | 230 mm |
| Track gauge | 750/1,120 mm |
| Tail swing radius | 900 mm |
| Track ground length | 1,225 mm |
| Track length | 1,585 mm |
| Counterweight ground clearance | 470 mm |
| Bucket capacity | 0.04m3 |
| WORKING RANGE | |
| Maximum digging height | 3,665 mm |
| Maximum dumping height | 2,635 mm |
| Maximum digging depth | 2,360 mm |
| Maximum vertical digging depth | 2,215 mm |
| Maximum digging reach | 4,000 mm |
| Minimum swing radius | 1,655 mm |
| Blade max height | 310 mm |
| Blade max depth | 320 mm |
| WEIGHT | |
| Operating weight | 1,965 kg |
| HYDRAULIC SYSTEM | |
| Main pump | Variable displacement axial piston pumps with a load-sensing hydraulic system |
| Maximum oil flow | 60 l/m |
| Main rotary drive | 24.5 MPa |
| RELIEF VALVE SETTING | |
| Boom circuit | 245 bar |
| Slewing circuit | 162 bar |
| Drive circuit | 245 bar |
| Pilot control circuit | 35 bar |
| PERFORMANCE | |
| Power | 15 Kw (Peak) / 10 Kw (Continuous) |
| Traveling speed (High-Low) | 3.2/2.3 km/h |
| Swing speed | 10 rpm |
| Gradeability | 50.6° |
| Gross capacity | 22 Kw/h |
| Max system flow | 90 l/m |
| Bucket digging force | 15.2 kN |
| Arm digging force | 9.2 kN |
| Noise | 66/83 dB |
