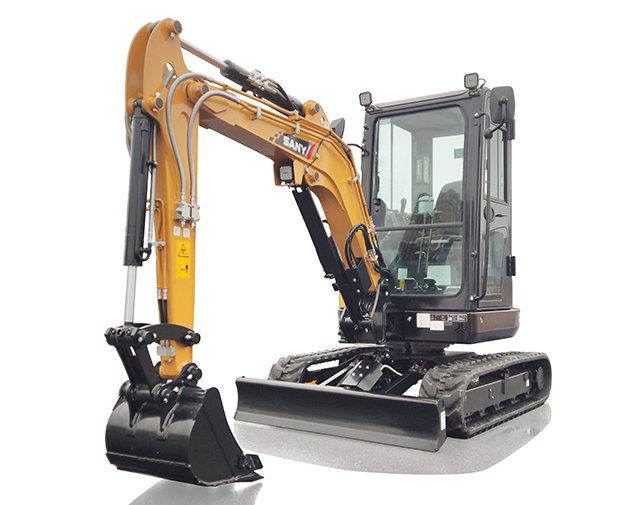

The SY26C mini excavator operates with a reduced tail swing offering that perfect combination of compact size and powerful performance. The ideal solution for construction, landscaping, agriculture and small jobsites, it allows you to work and load in areas where space might be limited.
– Short tail swing mini excavator
– Easily towable with secure tie down points for safe transportation
– 5 year warranty for complete peace of mind
Interested in this machine?
Please complete the form below.
PERFORMANCE
The SY26C is in its element whenever it can demonstrate its speed and power.
+ Short tail swing mini excavator for maximum stability
+ Light weight and compact dimensions for easy transportation and manoeuvrability on site
+ Stage V YANMAR engine and efficient, load sensing hydraulics to maximise on fuel economy
+ 100% steel bodywork for maximum protection and reduced cost of ownership

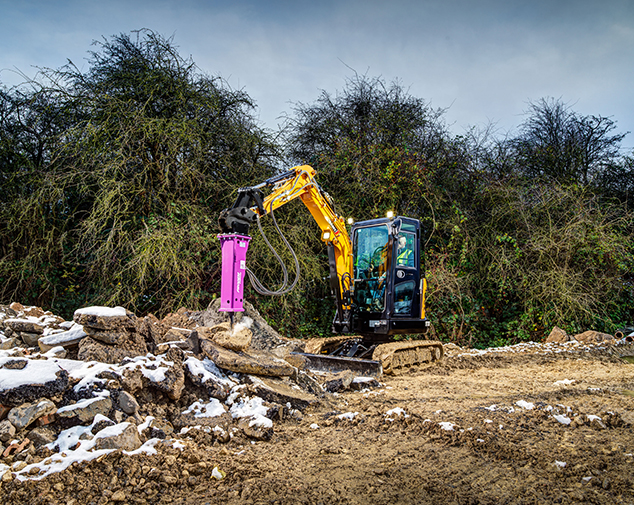

+ Hammer, bi-directional and rotate pipework with proportional controls enabling maximum versatility whatever the application
SAFETY
The SY26C is designed to ensure maximum safety for the operator and on the job site.
+ ROPS/TOPS certified cab for safe operation
+ Optimal visibility for increased on site safety
+ Battery disconnect switch
+ Travel alarm and rotating warning beacon to increase visibility, attract attention and ensure safety
OPERATOR COMFORT
With a next generation cab, operators can look forward to maximum comfort and easier, fatigue-free operation.
+ Responsive and precise controls
+ Ergonomic and comfortable air suspension operator’s seat
+ Clear instrumentation and large high resolution colour display
+ Quiet, low vibration engine so noise levels are kept to a minimum
+ LED work lights for maximum visibility in low light conditions
SERVICE
+ Easy access to all maintenance points
SECURITY
+ Registered and protected with the CESAR Datatag Scheme (the premier initiative against equipment theft) and CESAR ECV for quick and easy verification of emissions category
WARRANTY
+ 5-year/5000 hour warranty as standard for complete peace of mind (Terms and Conditions apply)
SPECIFICATIONS
| DIMENSIONS | |
| Transport length | 4,160 mm |
| Transport width | 1,550 mm |
| Transport height | 2,410 mm |
| Upper structure width | 1,375 mm |
| Blade height | 300 mm |
| Track width (standard shoe) | 300 mm |
| Track gauge | 1,250 mm |
| Ground clearance (minimum) | 290 mm |
| Tail swing radius | 915 mm |
| Track length | 2,005 mm |
| Boom length | 2,100 mm |
| Arm length | 1,300 mm |
| WORKING RANGE | |
| Maximum digging height | 4,405 mm |
| Maximum dumping height | 3,130 mm |
| Maximum digging depth | 2,810 mm |
| Maximum vertical wall digging depth | 2,210 mm |
| Maximum reach at ground level | 4,710 mm |
| Minimum swing radius | 1,985 mm |
| ENGINE | |
| Model | 3TNV80F |
| Rated power | 14.6 kW |
| Displacement | 1,267 l |
| HYDRAULIC SYSTEM | |
| Main pumps | 1 adjustable axial piston pump |
| Operating flow (maximum) | 78.0 L/min |
| Travel drive | 2 adjustable axial piston pumps |
| SERVICE REFILL CAPACITIES | |
| Fuel tank capacity | 34 l |
| Hydraulic tank capacity | 30.0 l |
| Engine oil capacity | 3.4 l |
| Cooling system capacity |
