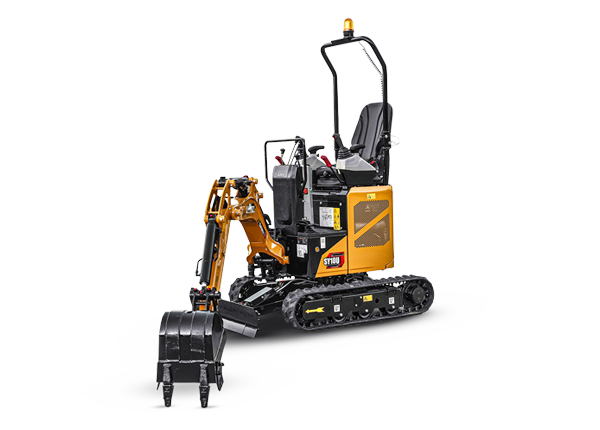

Designed with a strong focus on safety, the SY10U ensures reliable protection in all operating conditions.
+ ROPS certified canopy for safe operation
+ Optimal visibility for increased on site safety
+ Battery disconnect switch and emergency stop button
+ Travel alarm and rotating warning beacon to increase visibility, attract attention and ensure safety
The operator space of the SY10U has been thoughtfully engineered for daily use, offering maximum comfort and ergonomic efficiency
+ Responsive and precise controls
+ Ergonomic and comfortable operator’s seat
+ Clear instrumentation and high resolution colour display
+ Quiet, low vibration engine so noise levels are kept to a minimum
+ LED work lights for maximum versatility in low light conditions
+ Easy access to all maintenance points
+ Registered and protected with the CESAR Datatag Scheme (the premier initiative against equipment theft) and CESAR ECV for quick and easy verification of emissions category
+ SANY EVI telematics technology is used to monitor a wide
range of information relating to an individual machine or
an entire fleet. Data is gathered by the onboard controllers
on SANY machines to keep data transferring throughout the
day. If you have a mixed fleet with other OEMs, you can
easily access data for your SANY equipment and other brands
using a telematics API, together in one management system.
+ 5-year/5000 hour warranty as standard for complete peace of mind (Terms and Conditions apply)
|
DIMENSIONS
|
|
|
|
Overall length
|
3,018 mm
|
|
|
Overall width
|
745/1,100 mm
|
|
|
Overall width of superstructure
|
745 mm
|
|
|
Overall height above cab
|
2,290 mm
|
|
|
Track length on ground/overall
|
1,041/1,354 mm
|
|
|
Track width
|
180 mm
|
|
|
Blade height
|
220 mm
|
|
|
Tail swing radius
|
550 mm
|
|
|
Boom length
|
1,460 mm
|
|
|
Arm length
|
890 mm
|
|
|
Bucket capacity
|
0.025 cubic meters
|
|
|
|
|
|
|
WORKING RANGE
|
|
|
|
Max. digging height
|
3,037 mm
|
|
|
Max. dig depth
|
1,868 mm
|
|
|
Max. dig depth, vertical wall
|
1,614 mm
|
|
|
Max. dumping height
|
2,096 mm
|
|
|
Max. lifting height of blade
|
260 mm
|
|
|
|
|
|
|
WEIGHT
|
|
|
|
Operating weight
|
1,195 kg
|
|
|
|
|
|
|
ENGINE
|
|
|
|
Model
|
Kubota D722
|
|
|
Rated power
|
8.8 kW
|
|
|
Max. torque
|
2,200 rpm
|
|
|
|
|
|
|
HYDRAULIC SYSTEM
|
|
|
|
Main pump
|
Load sensing with pilot control
|
|
|
Maximum oil flow
|
40 l/min
|
|
|
Maximum operating pressure
|
26 MPa
|
|
|
|
|
|
|
PERFORMANCE
|
|
|
|
Swing speed
|
10 rpm
|
|
|
Max. ground speed
|
3.4 km/h
|
|
|
Max. traction
|
8.8 kN
|
|
|
Climbing ability
|
30°
|
|
|
|
|
|
|
SERVICE REFILL CAPACITIES
|
|
|
|
Tank
|
13 l
|
|
|
Engine coolant
|
3.8 l
|
|
|
Engine oil
|
3.8 l
|
|
|
Hydraulic tank
|
11 l
|
|
|
|
|
|
