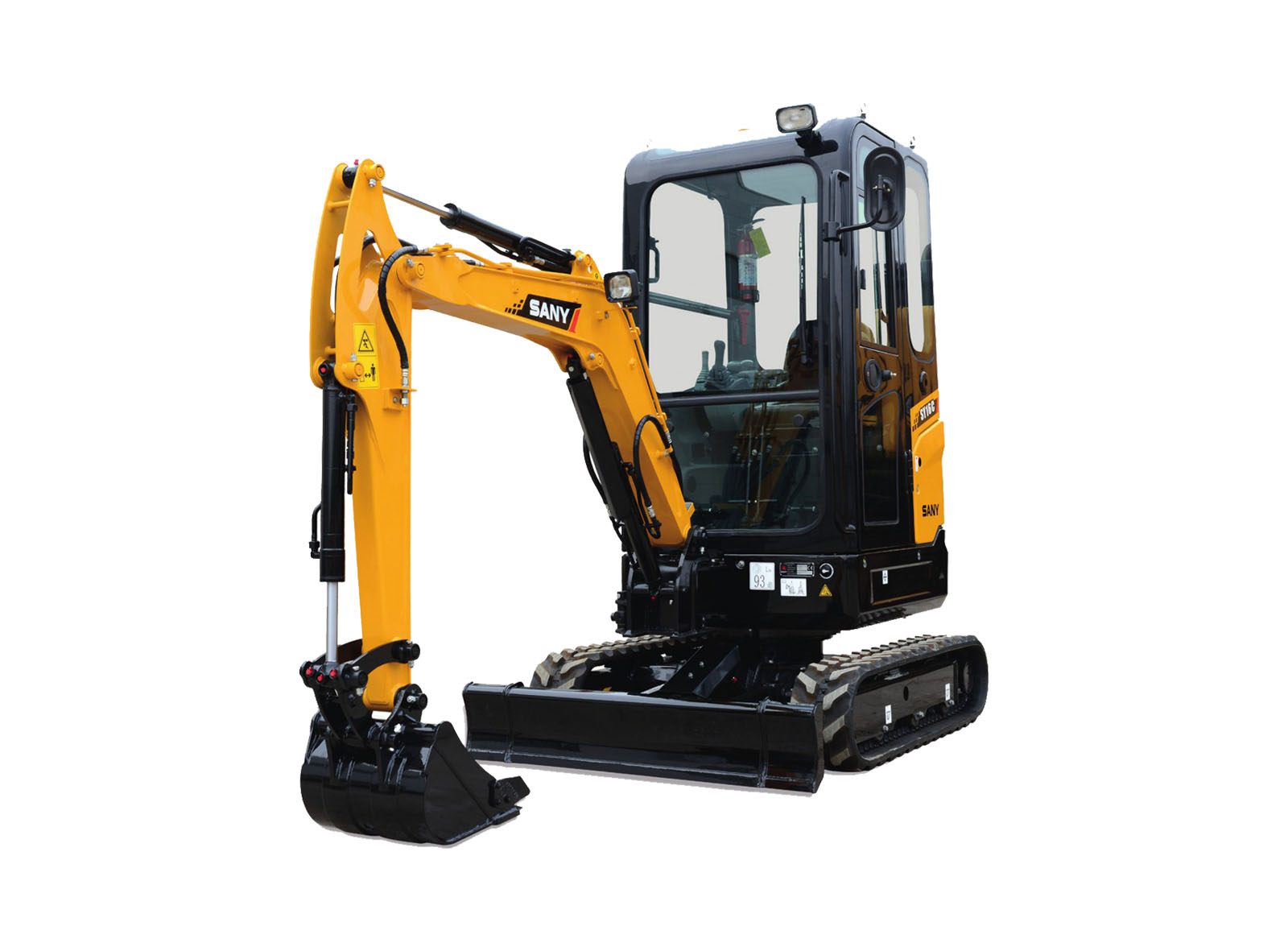

The SY18C is fully equipped for precise, safe working even in very confined application conditions.
+ ROPS/TOPS certified cab for safe operation
+ Optimal visibility for increased on site safety
+ Battery disconnect switch and emergency stop button
+ Travel alarm and rotating warning beacon to increase visibility, attract attention and ensure safety
With the SY18C operators can look forward to maximum comfort and easier, fatigue-free operation.
+ Responsive and precise controls
+ Ergonomic and comfortable operator’s seat
+ Clear instrumentation and large high resolution colour display
+ Quiet, low vibration engine so noise levels are kept to a minimum
+ LED work lights for maximum versatility in low light conditions
+ Easy access to all maintenance points
+ Registered and protected with the CESAR Datatag Scheme (the premier initiative against equipment theft) and CESAR ECV for quick and easy verification of emissions category
+ SANY EVI telematics technology is used to monitor a wide
range of information relating to an individual machine or
an entire fleet. Data is gathered by the onboard controllers
on SANY machines to keep data transferring throughout the
day. If you have a mixed fleet with other OEMs, you can
easily access data for your SANY equipment and other brands
using a telematics API, together in one management system.
+ 5-year/5000 hour warranty as standard for complete peace of mind (Terms and Conditions apply)
|
DIMENSIONS
|
|
|
|
Overall length
|
3,665 mm
|
|
|
Overall width
|
1,030/1,350 mm
|
|
|
Overall width of superstructure
|
1030 mm
|
|
|
Overall height above cab
|
2,410 mm
|
|
|
Rear length
|
920 mm
|
|
|
Track width
|
750/1,120 mm
|
|
|
Landing gear length
|
1,585 mm
|
|
|
Landing gear width (dozer blade)
|
980/1,350 mm
|
|
|
Blade height
|
270 mm
|
|
|
Track link width
|
230 mm
|
|
|
Tail swing radius
|
920 mm
|
|
|
Distance between track wheel and guide wheel (centre)
|
1,220 mm
|
|
|
Boom length
|
1,810 mm
|
|
|
Arm length
|
1,130 mm
|
|
|
|
|
|
|
|
|
|
|
WORKING RANGE
|
|
|
|
Max. ground level range
|
4,000 mm
|
|
|
Max. excavation depth
|
2,360 mm
|
|
|
Max. vertical range
|
3,665 mm
|
|
|
Max. dumping height
|
2,635 mm
|
|
|
Minute radius of gyration
|
1,705 mm
|
|
|
Max. excavation depth, vertical wall
|
2,215 mm
|
|
|
Min. working machine height. radius of gyration
|
2,745 mm
|
|
|
|
|
|
|
WEIGHT
|
|
|
|
Operating weight
|
1,910 kg
|
|
|
|
|
|
|
ENGINE
|
|
|
|
Model
|
Yanmar 3TNV80F
|
|
|
Rated power
|
14,6 kW
|
|
|
Max. torque
|
65.3 Nm/1,800 ft/min
|
|
|
Shift
|
1267 cubic cm
|
|
|
|
|
|
|
HYDRAULIC SYSTEM
|
|
|
|
Main pump
|
1 Adjustable axial piston pump
|
|
|
Maximum oil flow
|
40 l/min
|
|
|
Travel drive
|
2 Adjustable axial piston pump
|
|
|
Rotary gear
|
1 Adjustable axial piston pump
|
|
|
|
|
|
|
RELIEF VALVE SETTING
|
|
|
|
Boom circuit
|
270 bar
|
|
|
Slewing circuit
|
162 bar
|
|
|
Drive circuit
|
270 bar
|
|
|
Pilot Control Circuit
|
35 bar
|
|
|
|
|
|
|
PERFORMANCE
|
|
|
|
Swing speed
|
10 rpm
|
|
|
Max. ground speed
|
4 km/h faster, 2.7 km/h slower
|
|
|
Max. traction
|
15.6kN
|
|
|
Climbing ability
|
30°
|
|
|
ISO bucket separation force
|
15.2 kN
|
|
|
ISO arm tear
|
9.2kN
|
|
|
|
|
|
|
SERVICE REFILL CAPACITIES
|
|
|
|
Tank
|
20 l
|
|
|
Engine coolant
|
5 l
|
|
|
Engine oil
|
3.4 l
|
|
|
Travel drive (each side)
|
0.33 l
|
|
|
Hydraulic tank
|
21 l
|
|
|
|
|
|
