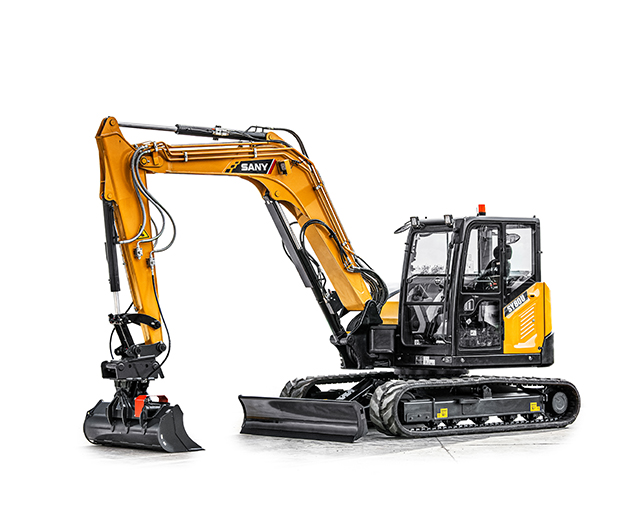

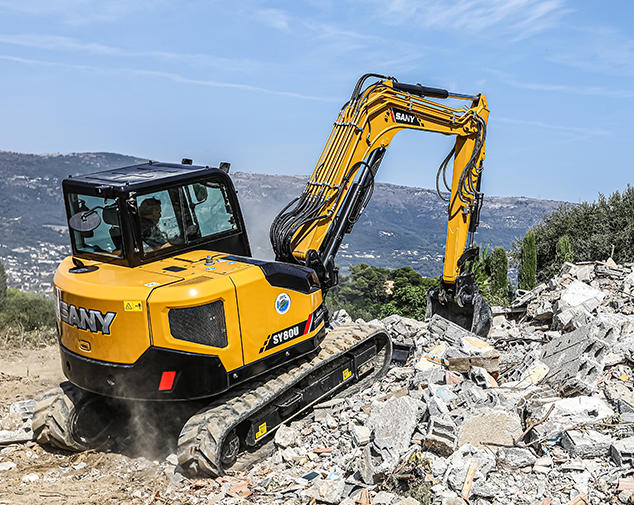

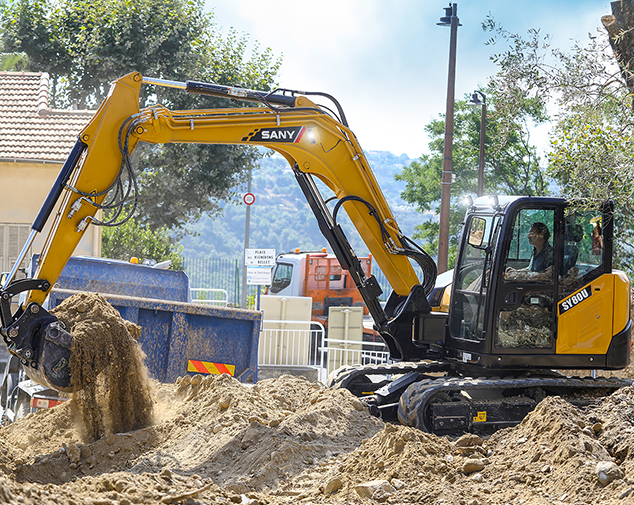

Its compact dimensions and minimal slewing radius make the SY80U short-tail-swing excavator the smallest SANY compact excavator there is. It’s in its element anywhere where precise power is needed in confined spaces and on construction sites with impaired visibility. With an efficient slewing radius of no more than 1,480mm, it’s an ideal choice for both construction and landscaping works.
– Extremely compact short-tail-swing excavator with Stage V YANMAR engine
– Excellent panoramic visibility and comfortable operators cab
– 5 year warranty for complete peace of mind
Interested in this machine?
Please complete the form below.
PERFORMANCE
The SY80U short-tail-swing excavator is tailored to the requirements of tough everyday use on the construction site. Aside from its compact design, it impresses with its first-class performance, its low fuel consumption and its outstanding user comfort.
+ Compact design and short-tail-swing radius allows for easy manoeuvrability and increased versatility
+ Stage V YANMAR engine and efficient, load sensing hydraulics to maximise on fuel economy
+ 100% steel bodywork for maximum protection and reduced cost of ownership
+ Hammer, bi-directional and rotate pipework with proportional controls enabling maximum versatility whatever the application
+ Optional 260kg bolt on counterweight
+ Optional two-piece boom available with 400kg bolt on counterweight
SAFETY
Reliably stable, the SY80U guarantees maximum safety in all working conditions.
+ ROPS/TOPS certified cab for safe operation
+ Optimal visibility for increased on site safety
+ Battery disconnect switch
+ Travel alarm and rotating warning beacon to increase visibility, attract attention and ensure safety
+ Rear camera fitted for increased site safety
OPERATOR COMFORT
The SY80U offers a new generation cab with the highest levels of comfort to ensure that the operator can achieve maximum productivity while working.
+ Joystick with 2 proportional control circuits allows for safe and precise control
+ Upgraded ergonomic and comfortable air suspension operator’s seat
+ An intuitive 7” touch screen display that has been designed with high performance and ease of use in mind
+ Quiet, low vibration engine so noise levels are kept to a minimum
+ Gear changing on the blade lever offers great convenience
+ LED work lights for maximum visibility in low light conditions
SERVICE
+ Easy access to all maintenance points
+ Low maintenance requirements and longer service intervals
SECURITY
+ Registered and protected with the CESAR Datatag Scheme (the premier initiative against equipment theft) and CESAR ECV for quick and easy verification of emissions category
WARRANTY
+ 5-year/5000 hour warranty as standard for complete peace of mind (Terms and Conditions apply)
SPECIFICATIONS
| DIMENSIONS | |
| Transport length | 7,010 mm |
| Transport width | 2,220 mm |
| Upper structure carriage | 2,150 mm |
| Height over cabin/ROPS | 2,550 mm |
| Height of Boom – transport | 2,220 mm |
| Overall length of crawler | 2,915 mm |
| Tail length | 1,480 mm |
| Track gauge | 1,750 mm |
| Undercarriage width (blade) | 2,200 mm |
| Horizontal distance to blade | 2,080 mm |
| Blade height | 450 mm |
| Track height | 660 mm |
| Engine cover height | 1,880 mm |
| Tail swing radius | 1,480 mm |
| Center distance of tumblers | 2,315 mm |
| WORKING RANGE | |
| Max. digging reach | 7,290 mm |
| Max. digging depth | 4,535 mm |
| Max. digging height | 7,315 mm |
| Max. dumping height | 5,430 mm |
| Max. vertical digging depth | 2,490 mm |
| Max. clearance when blade up | 480 mm |
| Max. depth of blade down | 325 mm |
| WEIGHT | |
| Operating weight | 8,800 kg |
| ENGINE | |
| Model | 4TNV98CT-VSY |
| Rated power | 53.7 kW / 2,100 rpm |
| Max. torque | 290 Nm / 1,350 rpm |
| Displacement | 3,318 ccm |
| HYDRAULIC SYSTEM | |
| Main pump | 1 Adjustable axial piston pump |
| Maximum oil flow | 1 x 193.2 l/min |
| Travel drive | Variable displacement axial piston motor |
| Rotary gear | Axial piston motor |
| RELIEF VALVE SETTING | |
| Boom circuit | 280 bar |
| Slewing circuit | 215 bar |
| Drive circuit | 280 bar |
| Pilot Control Circuit | 35 bar |
| PERFORMANCE | |
| Swing speed | 11 rpm |
| Max. ground speed | 4.5 km/h faster, 2.5 km/h slower |
| Max. traction | 70 kN |
| Climbing ability | 35° |
| Max. bucket digging force | 59 kN |
| Max. arm digging force | 44.5 kN |
| SERVICE REFILL CAPACITIES | |
| Fuel tank | 100 l |
| Engine coolant | 12 l |
| Engine oil | 10.2 l |
| Travel drive (each side) | 1.2 l |
| Hydraulic tank | 120 l |
