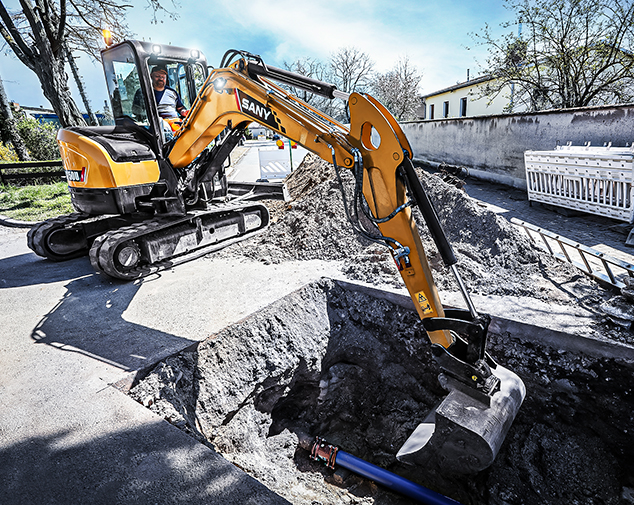

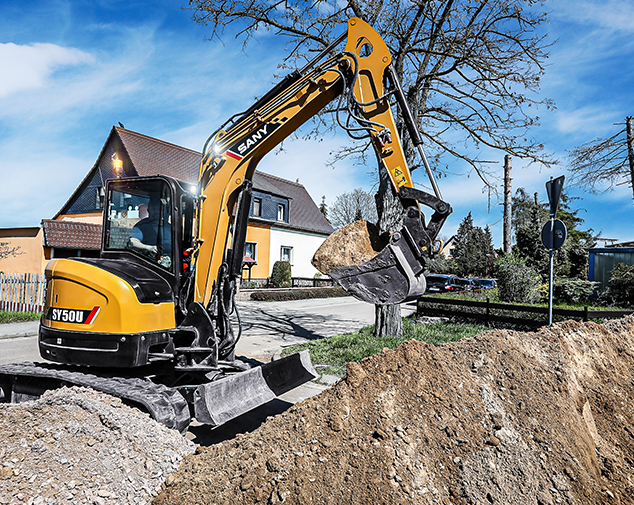

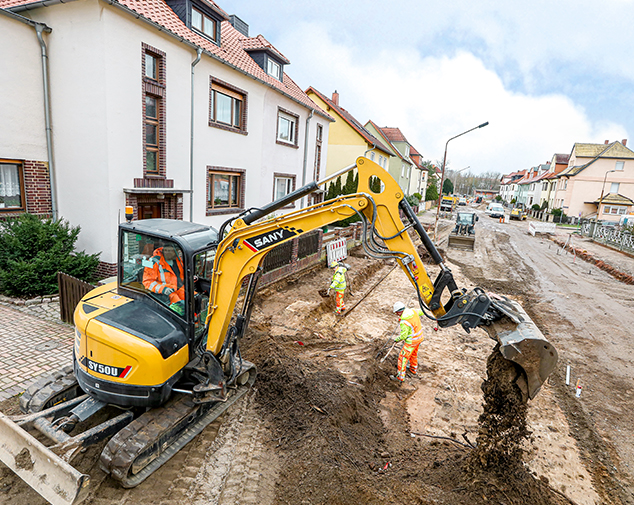

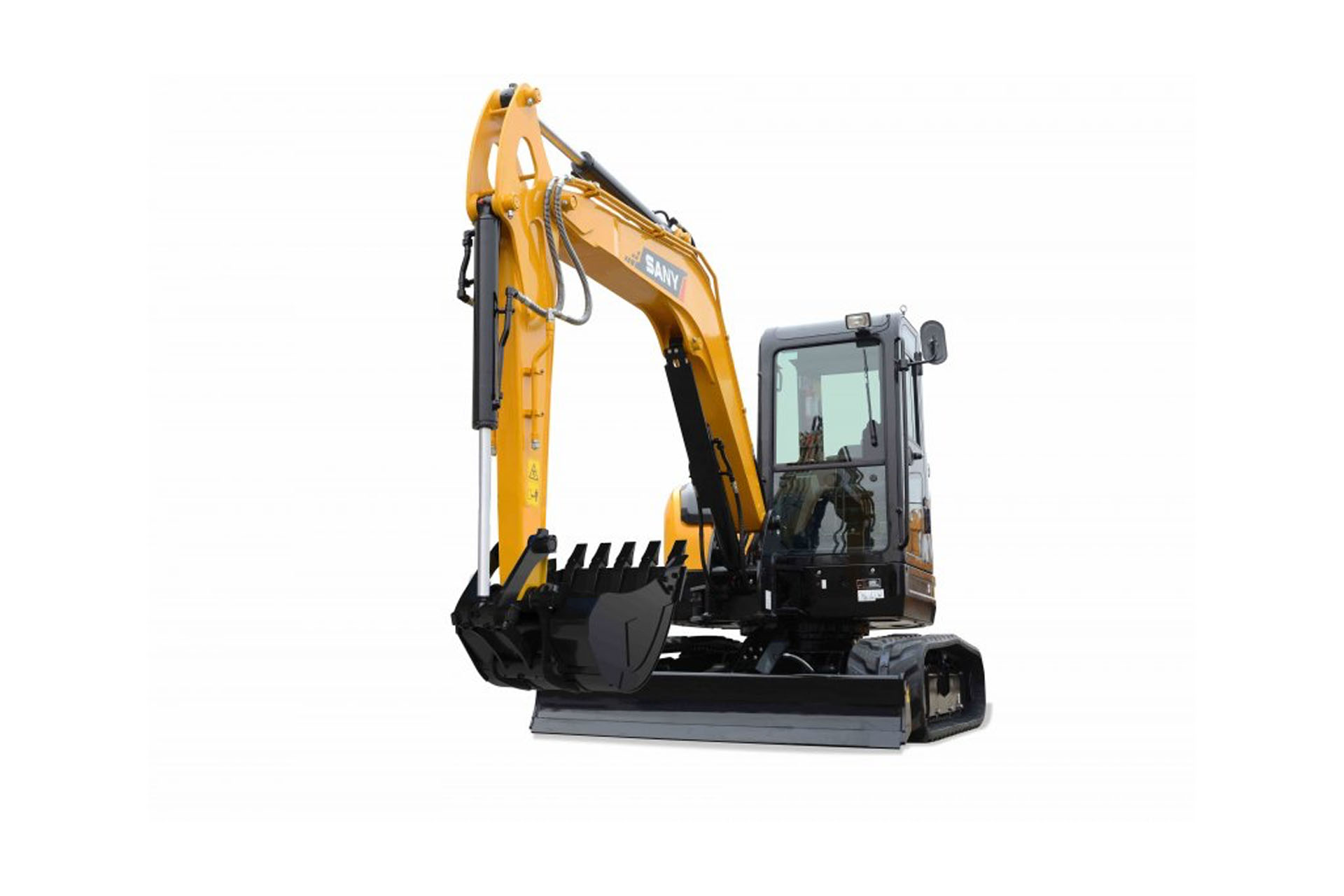

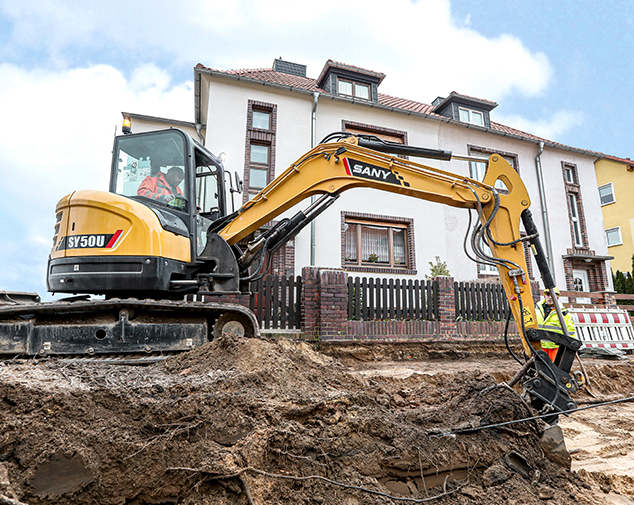

The safety features of the SANY SY50U ensure the operator and your job site stay safe at all times.
+ ROPS/TOPS certified cab for safe operation
+ Optimal all-round visibility for increased on site safety
+ Battery disconnect switch
+ Travel alarm and rotating warning beacon to increase visibility, attract attention and ensure safety
Despite the compact dimensions, the generously designed cab of the SY50U offers the highest levels of comfort.
+ Responsive and precise controls
+ Ergonomic and comfortable operator’s seat
+ Clear instrumentation and large high resolution colour display
+ Quiet, low vibration engine so noise levels are kept to a minimum
+ Manual air conditioning for improved operator comfort
+ LED work lights for maximum visibility in low light conditions
+ Easy access to all maintenance points
+ Low maintenance requirements and longer service intervals
+ Registered and protected with the CESAR Datatag Scheme (the premier initiative against equipment theft) and CESAR ECV for quick and easy verification of emissions category
+ SANY EVI telematics technology is used to monitor a wide
range of information relating to an individual machine or
an entire fleet. Data is gathered by the onboard controllers
on SANY machines to keep data transferring throughout the
day. If you have a mixed fleet with other OEMs, you can
easily access data for your SANY equipment and other brands
using a telematics API, together in one management system.
+ 5-year/5000 hour warranty as standard for complete peace of mind (Terms and Conditions)
|
DIMENSIONS
|
|
|
|
Overall length
|
5,390 mm
|
|
|
Overall width
|
1,960 mm
|
|
|
Overall superstructure width
|
1,760 mm
|
|
|
Overall height above cab
|
2,630 mm
|
|
|
Rear length
|
980 mm
|
|
|
Track width
|
1,560 mm
|
|
|
Undercarriage length
|
2,510 mm
|
|
|
Undercarriage width (dozer blade)
|
1,960 mm
|
|
|
Blade height
|
340 mm
|
|
|
Track link width
|
400 mm
|
|
|
Min. ground clearance
|
325 mm
|
|
|
Tail swing radius
|
980 mm
|
|
|
Distance (centre) between crawler wheel and guide wheel
|
1,970 mm
|
|
|
Boom length
|
2,700 mm
|
|
|
Bucket arm length
|
1,500 mm
|
|
|
Bucket capacity
|
0.152 m³
|
|
|
|
|
|
|
WEIGHT
|
|
|
|
Operating weight
|
5,100 kg (Plus 310kg bolt on counterweight)
|
|
|
|
|
|
|
WORKING RANGE
|
|
|
|
Max. horizontal reach on the ground
|
5,880 mm
|
|
|
Max. excavation depth
|
3,420 mm
|
|
|
Max. vertical reach
|
5,450 mm
|
|
|
Max. dumping height
|
3,795 mm
|
|
|
Min. slewing radius
|
2,520 mm
|
|
|
Max. excavation depth, vertical wall
|
2,460 mm
|
|
|
Working machine height at min. slewing radius
|
3805 mm
|
|
|
|
|
|
|
ENGINE
|
|
|
|
Model
|
4TNV86CT
|
|
|
Rated power
|
35.5 kW
|
|
|
Max. torque
|
144.9 Nm
|
|
|
Displacement
|
2.19 l
|
|
|
|
|
|
|
HYDRAULIC SYSTEM
|
|
|
|
Main pumps
|
1 Adjustable axial piston pump
|
|
|
Maximum oil flow
|
152 l/min
|
|
|
Travel drive
|
2 Adjustable axial piston pumps
|
|
|
Slewing gear
|
1 Adjustable axial piston pumps
|
|
|
|
|
|
|
RELIEF VALVE SETTINGS
|
|
|
|
Boom circuit
|
245 bar
|
|
|
Slewing circuit
|
191 bar
|
|
|
Drive circuit
|
245 bar
|
|
|
Pilot control circuit
|
35 bar
|
|
|
|
|
|
|
PERFORMANCE
|
|
|
|
Swing speed
|
10 rpm
|
|
|
Swing torque
|
10.2 kNm
|
|
|
Max. ground speeds
|
fast 4.0 km/h slow 2,7 km/h
|
|
|
Max. traction force
|
40.7 kN
|
|
|
Climbing ability
|
30°
|
|
|
ISO bucket breakaway force
|
32.5 kN
|
|
|
ISO arm tear-out force
|
22.9 kN
|
|
|
|
|
|
|
SERVICE REFILL CAPACITIES
|
|
|
|
Fuel tank
|
78 l
|
|
|
Engine coolant
|
4,2 l
|
|
|
Engine oil
|
7.4 l
|
|
|
Travel drive (per side)
|
0.9 l
|
|
|
Hydraulic system
|
80 l
|
|
|
Hydraulic oil tank
|
52 l
|
|
