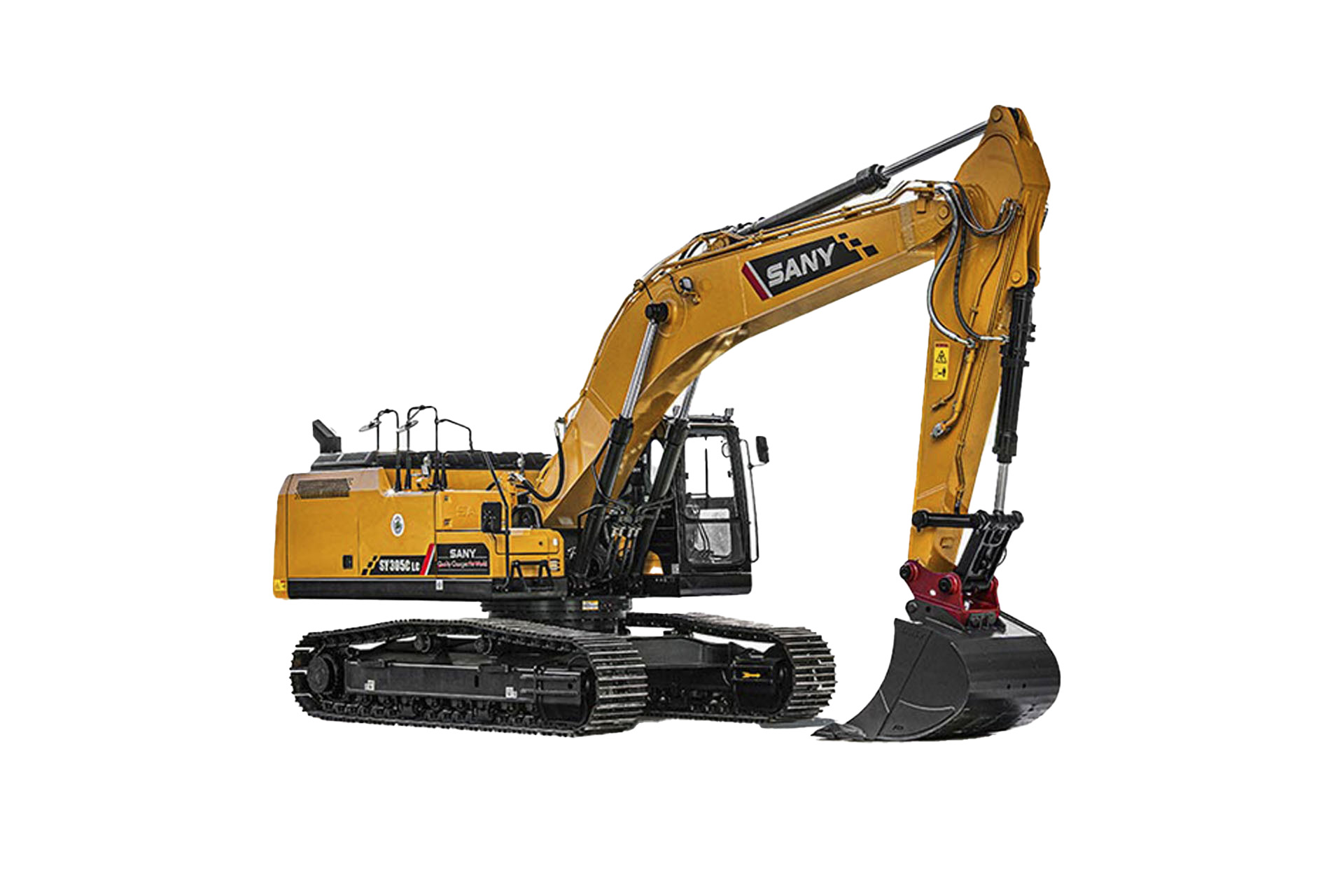

The SY305C is fully equipped for precise, safe working on the job site.
+ ROPS/TOPS certified cab for safe operation
+ Rear and side view camera for panoramic visibility
+ Travel alarm, green seat belt and rotating warning beacon to increase visibility, attract attention and ensure safety
+ LED work lights for maximum visibility in low light conditions
Operators of the SY305C can look forward to maximum comfort and easy, intuitive operation.
+ Ergonomic and fully adjustable, heated operator’s seat
+ Clear instrumentation and large high resolution colour display
+ Adjustable ventilation, heating and automatic climate control system
+ Integrated cooling box and large amount of storage space
+ Radio, speaker and USB port
+ Easy access to all maintenance points
+ Low maintenance requirements and longer service intervals
+ Ergonomic handrails and anti-slip tread surfaces allow safe access to the maintenance platform
+ Registered and protected with the CESAR Datatag Scheme (the premier initiative against equipment theft) and CESAR ECV for quick and easy verification of emissions category
+ SANY EVI telematics technology is used to monitor a wide range of information relating to an individual machine or an entire fleet. Data is gathered by the onboard controllers on SANY machines to keep data transferring throughout the day. If you have a mixed fleet with other OEMs, you can easily access data for your SANY equipment and other brands, using a telematics API, together in one management system.
+ 5-year/5000 hour warranty as standard for complete peace of mind (Terms and Conditions apply)
|
DIMENSIONS
|
|
Transport length
|
10,667 mm
|
|
Transport width
|
3,190 mm
|
|
Transport height
|
3,470 mm
|
|
Upper structure carriage(width)
|
2,986 mm
|
|
Height over cabin/ROPS
|
3,280 mm
|
|
Height of boom – transport
|
3,470 mm
|
|
Overall length of crawler
|
4,840 mm
|
|
Track gauge
|
2,590 mm
|
|
Track height
|
1,025 mm
|
|
Track pads width
|
Standard 700mm. Optional 600/800 mm
|
|
Minimum ground clearance
|
550 mm
|
|
Tail swing radius
|
2,590 mm
|
|
Centre distance of tumblers
|
3,916 mm
|
|
Ground pressure
|
60 Kp
|
|
Boom length
|
6,150 mm
|
|
Arm length
|
3,200 mm
|
|
Bottom rollers
|
8
|
|
Top rollers
|
2
|
|
|
|
|
WEIGHT
|
|
|
Operating weight
|
32,265 kg
|
|
|
|
ENGINE
|
|
Manufacturer
|
Cummins
|
|
Model
|
QSL9-C280 6 Cylinder
|
|
Rated power
|
209 kW
|
|
Max. torque
|
1472 Nm
|
|
Displacement
|
6.7 l
|
|
Exhaust emissions
|
Stage V
|
|
Batteries
|
24 v
|
|
|
|
HYDRAULIC SYSTEM
|
|
Max. oil flow l/min
|
2 x 280 l/min
|
|
|
|
RELIEF VALVE SETTING
|
|
Implement circuit
|
34.3 MPa
|
|
Power boost
|
37.3 MPa
|
|
Swing circuit
|
27.5 MPa
|
|
Travel circuit
|
34.3 MPa
|
|
Pilot pressure
|
3.9 MPa
|
|
|
|
SERVICE REFILL CAPACITIES
|
|
Fuel tank
|
430 l
|
|
Engine coolant
|
36 l
|
|
Engine oil
|
21 l
|
|
Drive (per side)
|
10.5 l
|
|
Hydraulic oil tank
|
300 l
|
|
AdBlue
|
85 l
|
|
|
|
PERFORMANCE
|
|
Swing speed
|
9 rpm
|
|
Travel speed (Low/High)
|
3.4/5.2 km/h
|
|
Max. travel force
|
245 kN
|
|
Gradeability
|
70%*(35°)
|
|
Bucket digging force ISO
|
204 kN
|
|
Arm digging force ISO
|
153 kN
|
|
|
|
WORKING RANGE
|
|
Max. digging reach
|
10,870 mm
|
|
Max. digging depth
|
6,815 mm
|
|
Max. digging height
|
10,495 mm
|
|
Max. dumping height
|
7,359 mm
|
|
Overall height over arm by Min .swing radius
|
8,405 mm
|
|
Min. swing radius
|
4,000 mm
|
