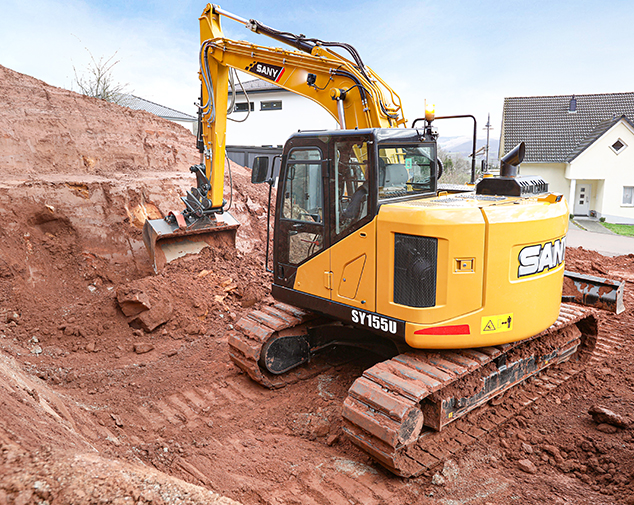

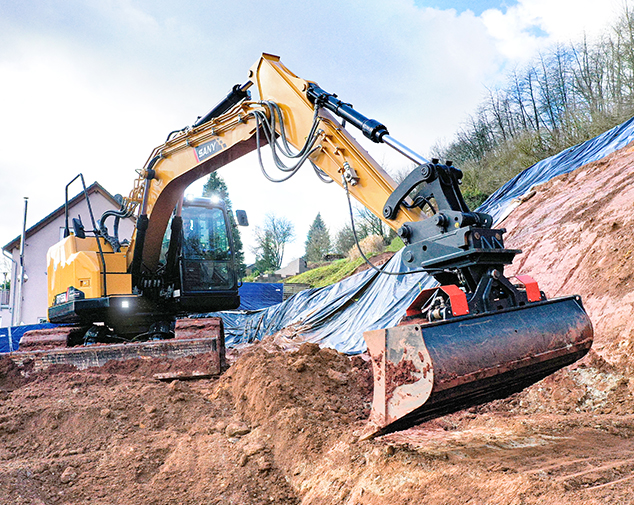

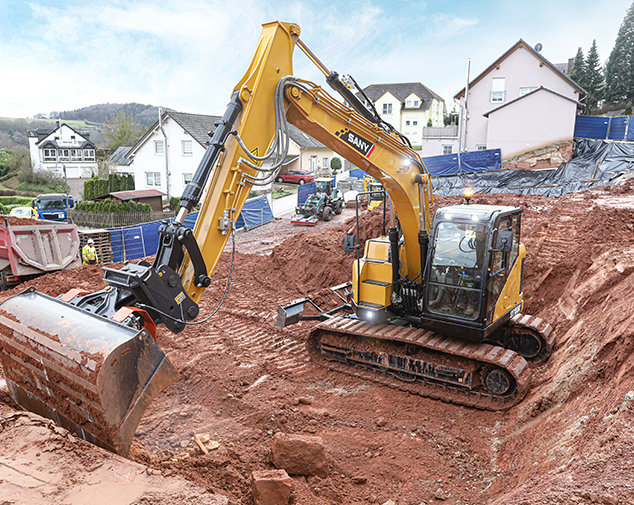

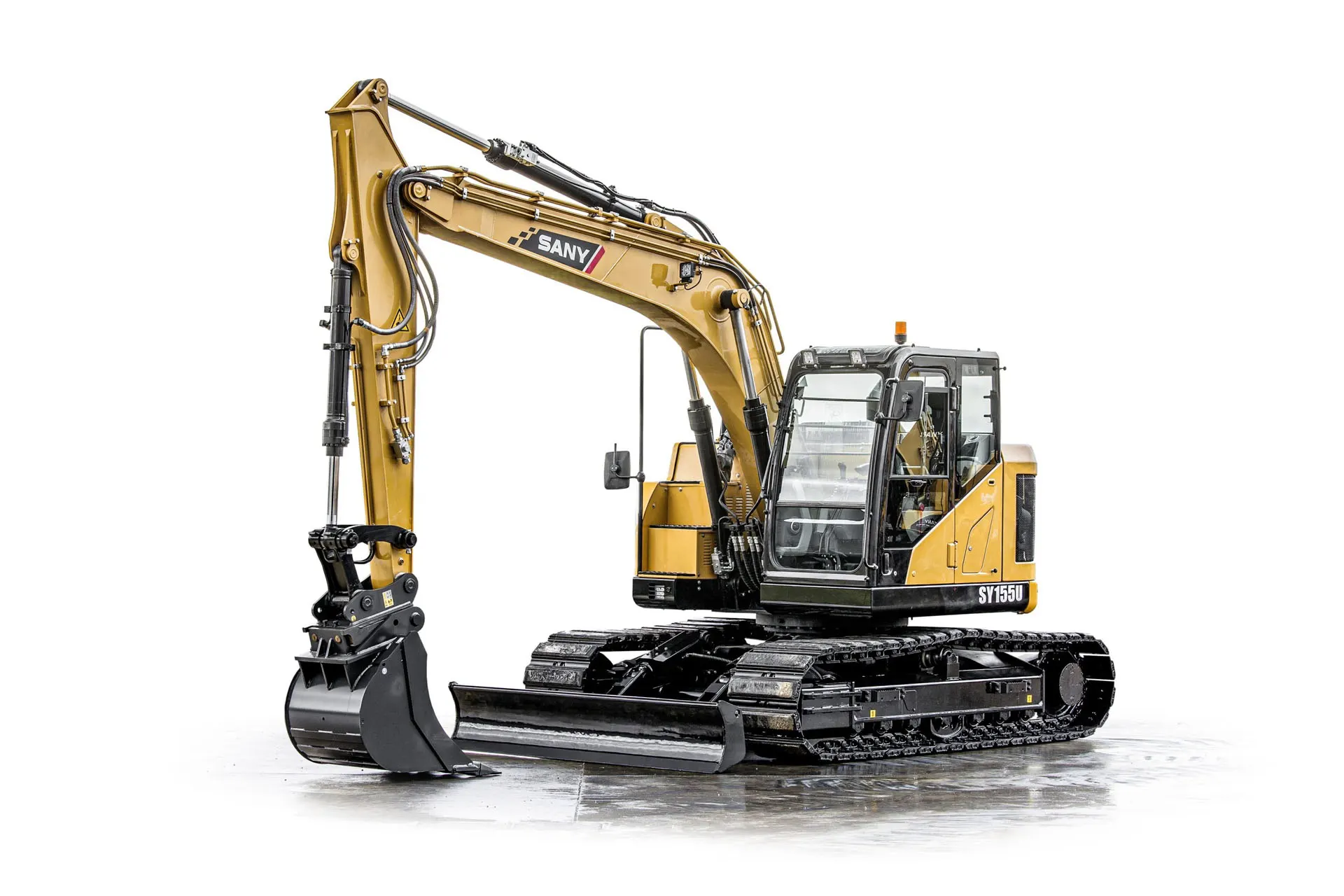

Thanks to its compact dimensions, the SANY SY155U short-tail-swing excavator is ideal for use in tight spaces such as inner-city construction sites. This machine is extremely economical to operate thanks to its very high productivity, exceptional driver comfort and low fuel consumption.
– Compact, short-tail-swing excavator with Stage V ISUZU engine
– Outstanding performance with low energy consumption
– 5 year warranty for complete peace of mind
Interested in this machine?
Please complete the form below.
PERFORMANCE
The efficiency of the SY155U means outstanding performance with low energy consumption.
+ Powerful short tail swing machine with short overhang radius enables working in tight spaces without any reduction in performance
+ Stage V ISUZU engine and efficient, load sensing hydraulics to maximise on fuel economy
+ Hammer, bi-directional and rotate pipework with proportional controls enabling maximum versatility whatever the application
+ 100% steel bodywork for maximum protection and reduced cost of ownership
+ Optional two-piece boom available
SAFETY
Safety features of the SY155U ensure maximum safety to those in and around the machine.
+ ROPS/TOPS certified cab for safe operation
+ Rear view camera provides optimal visibility for increased on site safety
+ Battery disconnect switch
+ Travel alarm and rotating warning beacon to increase visibility, attract attention and ensure safety
+ Dozer blade provides maximum stability and lift performance
OPERATOR COMFORT
Welcome to the comfort zone of the SY155U!
+ Air suspension operator’s seat
+ Clear instrumentation and large high resolution colour display
+ Quiet, low vibration engine so noise levels are kept to a minimum
+ Adjustable ventilation, heating and automatic climate control system
+ Integrated cooling box and large amount of storage space
+ LED work lights for maximum visibility in low light conditions
SERVICE
+ Easy access to all maintenance points
+ Low maintenance requirements and longer service intervals
+ Ergonomic handrails allow safe access to the maintenance platform
SECURITY
+ Registered and protected with the CESAR Datatag Scheme (the premier initiative against equipment theft) and CESAR ECV for quick and easy verification of emissions category
WARRANTY
+ 5-year/5000 hour warranty as standard for complete peace of mind (Terms and conditions apply)
SPECIFICATIONS
| DIMENSIONS | ||
| Overall length | 8,015mm | |
| Overall width | 2,690 mm | |
| Overall width of superstructure | 2,490 mm | |
| Overall height | 2,820 mm | |
| Rear length | 1,500 mm | |
| Track width | 1,990 mm | |
| Landing gear length | 3,665 mm | |
| Landing gear width (dozer blade) | 2,590 mm | |
| Blade height | 480 mm | |
| Track link width | 600 mm | |
| Min. ground clearance | 425 mm | |
| Tail swing radius | 1,500 mm | |
| Distance between track wheel and guide wheel (center) | 2,930 mm | |
| Boom length | 4,600 mm | |
| Arm length | 3,000 mm | |
| Bucket capacity | 0.6 m3 | |
| WEIGHT | ||
| Operating weight | 16,170 kg | |
| WORKING RANGE | ||
| Max. ground level range | 8,338 mm | |
| Max. digging depth | 6,020 mm | |
| Max. vertical range | 9,218 mm | |
| Max. dumping height | 7,200 mm | |
| Minute. radius of gyration | 2,086 mm | |
| Max. excavation depth, vertical wall | 3,796 mm | |
| ENGINE | ||
| Model | Isuzu AR-4JJ1XASC | |
| rated power | 78.5 kW | |
| Max. torque | 375 Nm/1,800 rpm | |
| Shift | 2.9 l | |
| HYDRAULIC SYSTEM | ||
| Main pump | 2 Adjustable axial piston pumps | |
| Maximum oil flow | 2 x 110 l / min | |
| Travel drive | 2 Adjustable axial piston pumps | |
| Slewing gear | 1 Adjustable axial piston pump | |
| RELIEF VALVE SETTINGS | ||
| Boom circuit | 343 bar | |
| Slewing circuit | 253 bar | |
| Drive circuit | 348 bar | |
| Pilot control circuit | 40 bar | |
| PERFORMANCE | ||
| Swing speed | 12.5 rpm | |
| Max. ground speeds | 5.3 km/h | |
| Max. traction force | 124 kN | |
| Climbing ability | 35° | |
| ISO bucket breakaway force | 103 kN | |
| ISO arm tear-out force | 67 kN | |
| SERVICE REFILL CAPACITIES | ||
| Fuel tank | 210 l | |
| Engine coolant | 23.6 l | |
| Engine oil | 15 l | |
| Travel drive (per side) | 2.2 l | |
| Hydraulic oil tank | 110 l |
