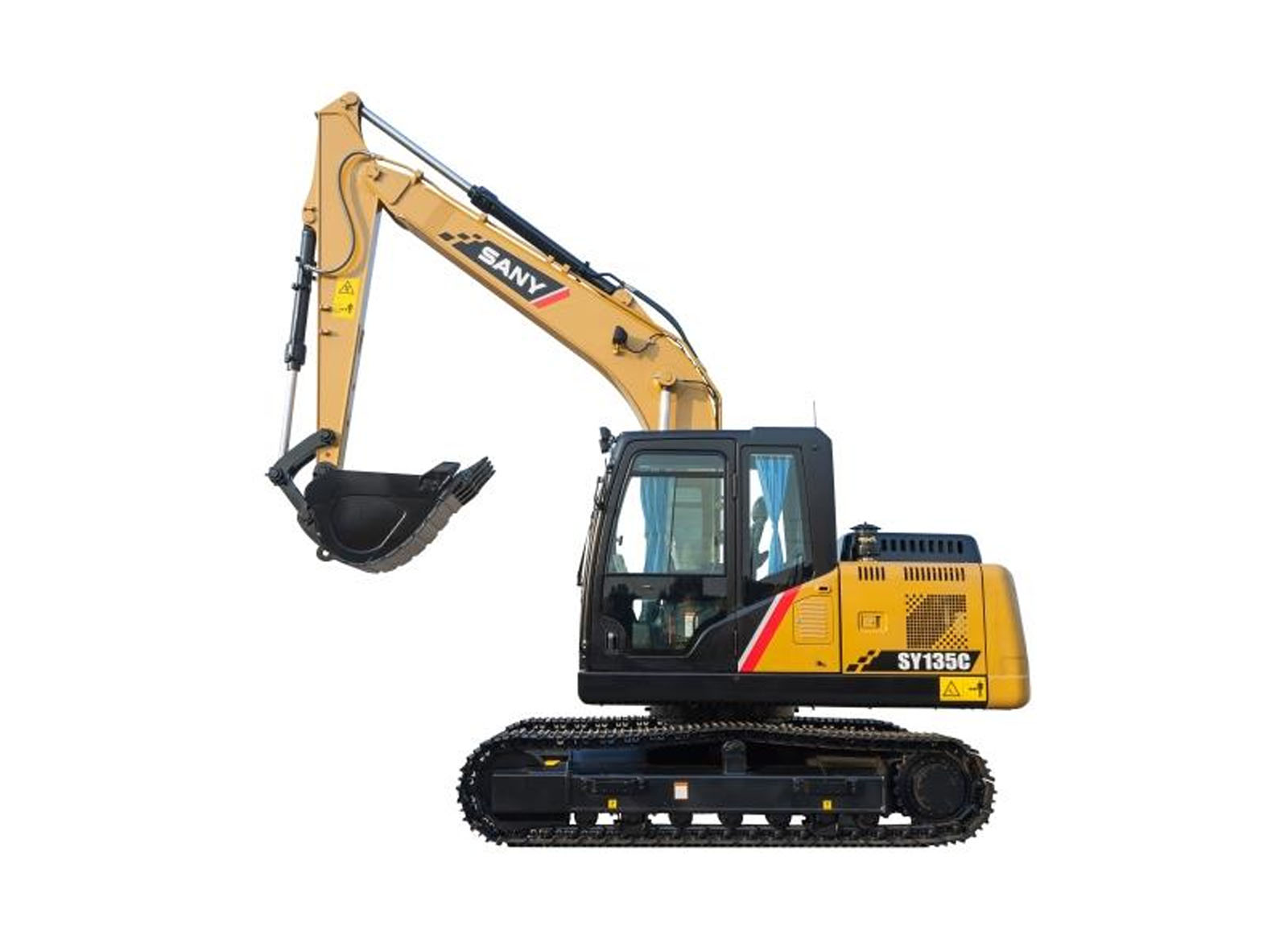

Sany SY135C Specifications

Select a category to view the information.

More work with less fuel! The SY135C’s powerful diesel engine and sophisticated hydraulics system ensures a strong performance with reduced fuel consumption that results in significant economic benefits.

+ Generous operating radius of maximum horizontal reach – 8,290mm and maximum excavation depth – 5,500mm

+ Stage V ISUZU engine and efficient, load sensing hydraulics to maximise on fuel economy

+ Hammer, bi-directional and rotate pipework with proportional controls enabling maximum versatility whatever the application

+ 100% steel bodywork for maximum protection and reduced cost of ownership

Safety features of the SY135C guarantee maximum safety and minimal risk to operators and people around the machine.

+ ROPS/TOPS certified cab for safe operation

+ Rear view camera provides optimal visibility for increased on site safety

+ Battery disconnect switch

+ Travel alarm and rotating warning beacon to increase visibility, attract attention and ensure safety

The SY135C offers a premium class of operator comfort as standard.

+ Air suspension operator’s seat

+ Clear instrumentation and large high resolution colour display

+ Quiet, low vibration engine so noise levels are kept to a minimum

+ Adjustable ventilation, heating and automatic climate control system

+ Integrated cooling box and large amount of storage space

+ LED work lights for maximum visibility in low light conditions

+ Easy access to all maintenance points

+ Low maintenance requirements and longer service intervals

+ Ergonomic handrails allow safe access to the maintenance platform

+ Registered and protected with the CESAR Datatag Scheme (the premier initiative against equipment theft) and CESAR ECV for quick and easy verification of emissions category

+ SANY EVI telematics technology is used to monitor a wide range of information relating to an individual machine or an entire fleet. Data is gathered by the onboard controllers on SANY machines to keep data transferring throughout the day. If you have a mixed fleet with other OEMs, you can easily access data for your SANY equipment and other brands, using a telematics API, together in one management system.

+ 5-year/5000 hour warranty as standard for complete peace of mind (Terms and Conditions apply)

DIMENSIONS
Overall length	7,500 mm
overall width	2,590 mm
Overall superstructure width	2,490 mm
Overall boom height	2,815 mm
Rear length	2,205 mm
Track width	1,990 mm
Landing gear length	3,665 mm
Landing gear width (dozer blade)	2,650 mm
Blade height	480 mm
Track shoe	700mm
Min. ground clearance	425 mm
Tail swing radius	2,205 mm
Distance between track wheel and guide wheel (center)	2,930 mm
Boom length	4,600 mm
Arm length	3000 mm
Bucket capacity	0.6 cubic meters

WEIGHT
Operating weight	14,666 kg

WORKING RANGE
Max. ground level range	8,290 mm
Max. digging depth	5,970 mm
Max. vertical range	8,645 mm
Max. dumping height	6,630 mm
Minute. radius of gyration	2,500 mm
Max. excavation depth, vertical wall	4,850 mm

ENGINE
Model	Isuzu 4JJ1X
Rated power	78.5 kW
Max. torque	375Nm/1600rpm
Shift	2.999 l

HYDRAULIC SYSTEM
Main pump	Adjustable axial piston pump
Max. oil flow	2 x 126 l / min
Travel drive	Adjustable axial piston pumps
Slewing gear	Adjustable axial piston pumps

RELIEF VALVE SETTINGS
Boom circuit	343 bar
Slewing circuit	253 bar
Drive circuit	343 bar
Pilot control circuit	39 bar

PERFORMANCE
Swing speed	12 rpm
Max. ground speeds	fast 5.3 km/h slow 3.5 km/h
Max. traction force	112 kN
Climbing ability	35°
ISO bucket breakaway force	103 kN
ISO arm tear-out force	67 kN

SERVICE REFILL CAPACITIES
Fuel tank	245 l
Engine coolant	23.6 l
Engine oil	15 l
Travel drive (per side)	5.5 l
Hydraulic oil tank	175 l
