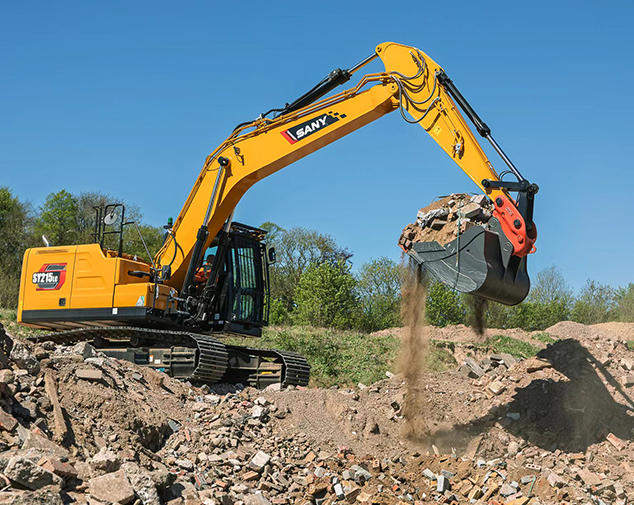

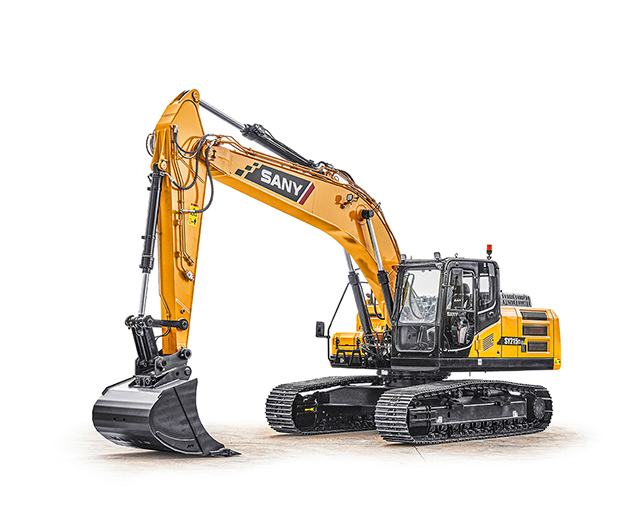

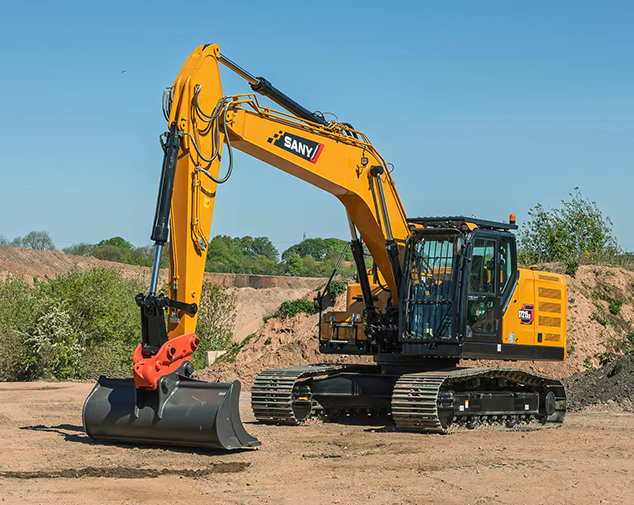

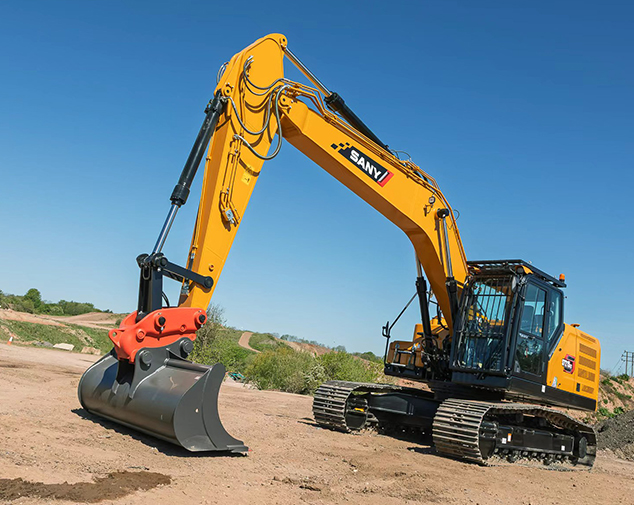

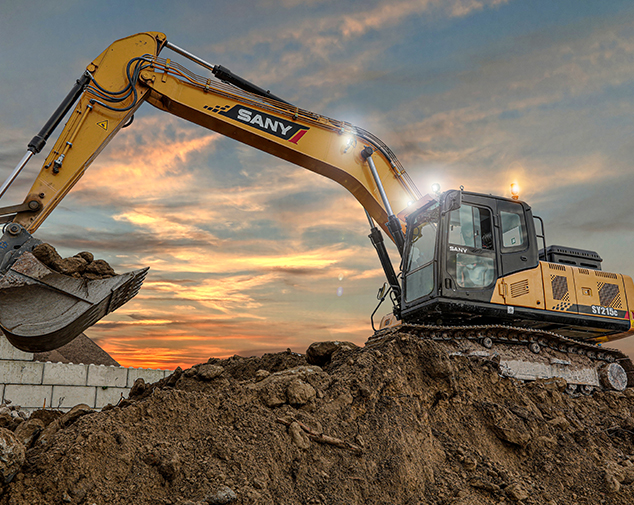

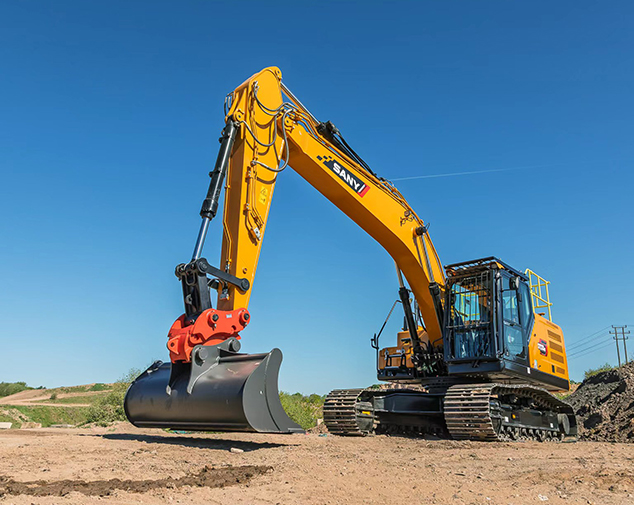

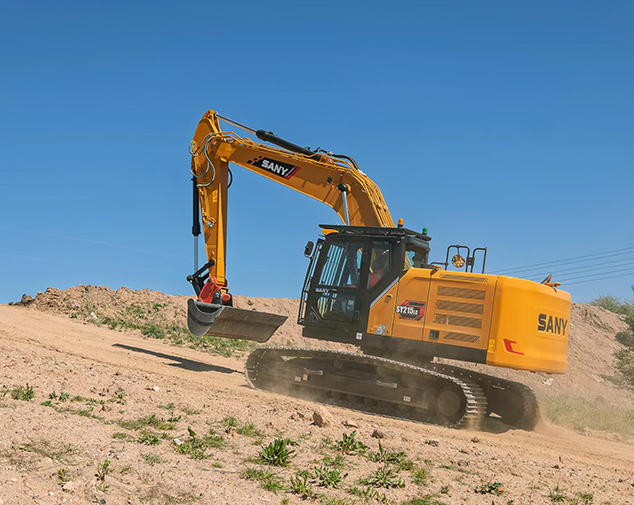

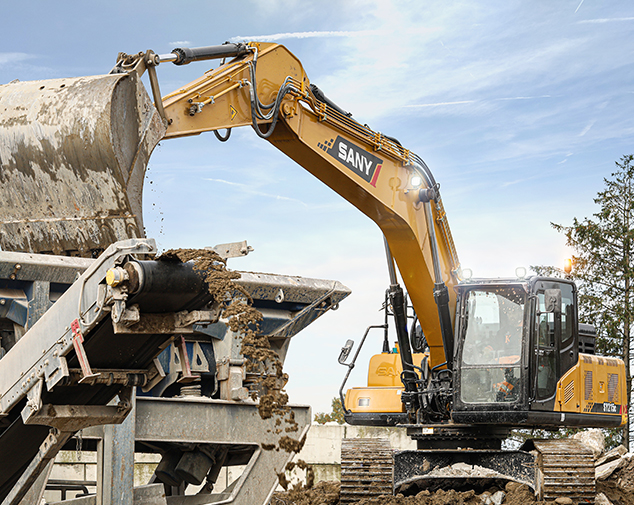

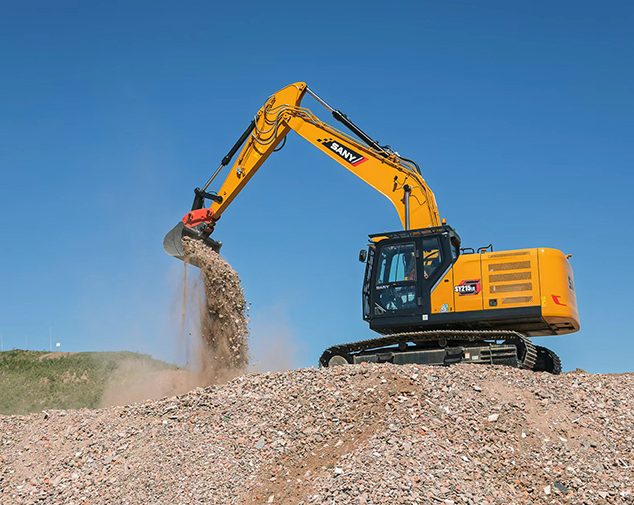

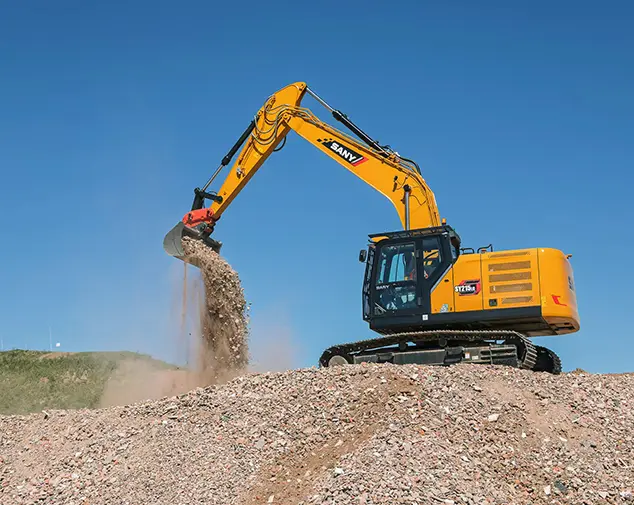

With the SANY SY215LC crawler excavator, you get more done. This machine is a real all-rounder and a specialist in every discipline, from quick loading to precise digging and powerful demolition work. What sets it apart is its ability to control its tremendous power with great precision – for maximum productivity and therefore a fast return on investment.
– Stage V CUMMINS engine and finely tuned Kawasaki hydraulic system
– Extremely powerful and offers outstanding driver comfort
– 5 year warranty for complete peace of mind

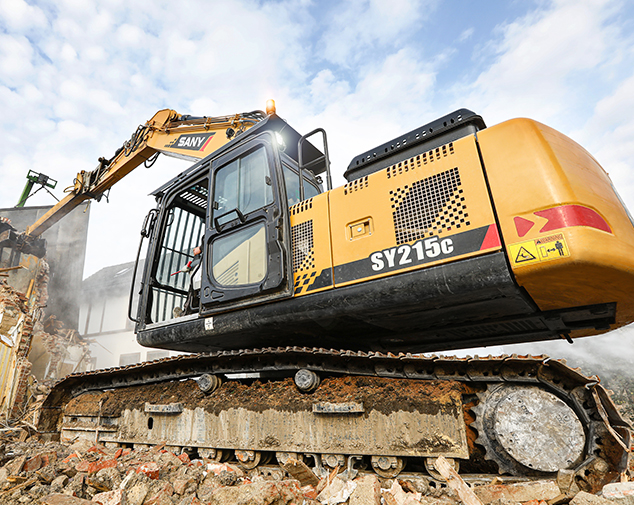

A demolition specification option (SY215C-XD) is also available. See ‘Specification’ below.
Technicial Data
Select a category to view the information.
With the SANY SY215LC crawler excavator you can expect the ultimate in performance, versatility on site and enhanced efficiency thanks to the smart hydraulic control system.
+ Heavy-duty undercarriage and solid boom provide an exemplary level of stability
+ Stage V CUMMINS engine and smart hydraulic control system to maximise on fuel economy
+ Hammer, bi-directional and rotate pipework with proportional controls enabling maximum versatility whatever the application
+ 100% steel bodywork for maximum protection and reduced cost of ownership
+ Optional long reach boom available
The combination of safety features for the SY215LC provides a safe working environment for both the operator and bystanders.
+ ROPS/TOPS certified cab for safe operation
+ Rear and side view camera provide optimal visibility for increased on site safety
+ Travel alarm, green seat belt and rotating warning beacon to increase visibility, attract attention and ensure safety
+ LED work lights for maximum visibility in low light conditions
The SY215LC has been designed for your operators comfort and ease of use.
+ Ergonomic and fully adjustable, heated operator’s seat
+ Clear instrumentation and large high resolution colour display
+ Adjustable ventilation, heating and automatic climate control system
+ Integrated cooling box and large amount of storage space
+ Radio and speaker
+ Easy access to all maintenance points
+ Low maintenance requirements and longer service intervals
+ Ergonomic handrails allow safe access to the maintenance platform
+ Registered and protected with the CESAR Datatag Scheme (the premier initiative against equipment theft) and CESAR ECV for quick and easy verification of emissions category
+ SANY EVI telematics technology is used to monitor a wide range of information relating to an individual machine or an entire fleet. Data is gathered by the onboard controllers on SANY machines to keep data transferring throughout the day. If you have a mixed fleet with other OEMs, you can easily access data for your SANY equipment and other brands, using a telematics API, together in one management system.
+ 5-year/5000 hour warranty as standard for complete peace of mind (Terms and Conditions apply)
| DIMENSIONS | |
| Transport length | 9,635 mm |
| Transport width | 3,080 mm |
| Transport height | 3,090 mm |
| Upper structure carriage width | 2,753 mm |
| Height over cabin/ROPS | 2,960 mm |
| Height of boom – transport | 3,370 mm |
| Overall length of crawler | 4,450 mm |
| Track gauge | 2,380 mm |
| Track height | 923 mm |
| Track pads width | Standard 700mm. Optional 600mm / 800mm |
| Minimum ground clearance | 468 mm |
| Counterweight clearance | 1,090 mm |
| Engine cover height | 2,630 mm |
| Tail swing radius | 2,950 mm |
| Centre distance of tumblers | 2,380 mm |
| Ground pressure | 50 KPa |
| WEIGHT | |
| Operating weight | 24,000 kg |
| ENGINE | |
| Manufacturer | Cummins |
| Model | Cummins QSB 6.7 – 6 cylinder |
| Rated power | 129 kW |
| Max. torque | 1472 Nm |
| Displacement | 6.7 l |
| Exhaust emissions | Stage V |
| Batteries | 24 v |
| HYDRAULIC SYSTEM | |
| Max. Oil flow | 2x 241 l/min |
| RELIEF VALVE SETTING | |
| Implement circuit | 34.3MPa |
| Power boost | 37.3 MPa |
| Swing circuit | 27.5 MPa |
| Travel circuit | 34.3 MPa |
| Pilot pressure | 3.9 MPa |
| SERVICE REFILL CAPACITIES | |
| Fuel tank | 370 l |
| Engine coolant | 27.6 l |
| Engine oil | 27 l |
| Drive (per side) | 5.5 l |
| Hydraulic oil tank | 200 l |
| AdBlue | 45 l |
| PERFORMANCE | |
| Swing speed | 11 rpm |
| Travel speed (Low/High) | 3.3/5.4 km/h |
| Max. travel force | 191 kN |
| Gradeability | 70%*(35°) |
| Bucket digging force ISO | 143 kN |
| Arm digging force ISO | 115 kN |
| Boom length | 5,700 mm |
| Arm length | 2,925 mm |
| Bottom rollers | 9 |
| Top rollers | 2 |
| Ground pressure | 50 KPa |
| WORKING RANGE | |
| Max. digging reach | 9,745 mm |
| Max. digging depth | 6,450 mm |
| Max. digging Height | 9,470 mm |
| Max. dumping height | 6,735 mm |
| DEMOLITION SPECIFICATION (SY215C-XD only) | |
| Heavy duty belly plates | Standard equipment |
| Bucket ram guard | Standard equipment |
| Stick ram guard | Standard equipment |
| Boom hoist guards | Standard equipment |
| Bolt on side impact protection (3 piece) | Standard equipment |
| 8 pre-settings for hydraulic attachments | Standard equipment |
| FOG guard bolt on cab protection (Level 2) | Standard equipment |
