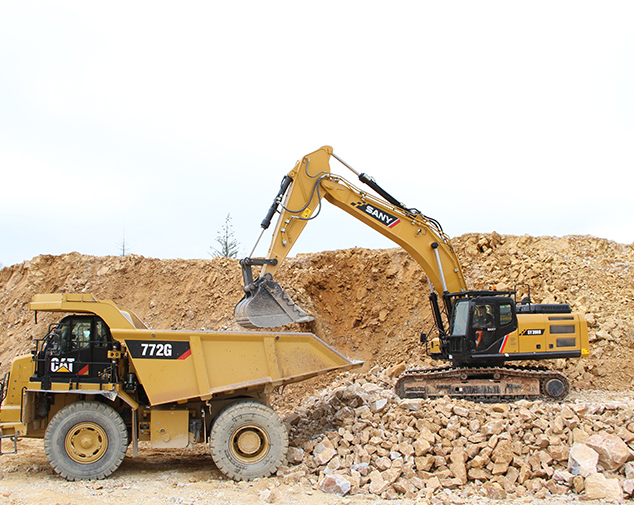

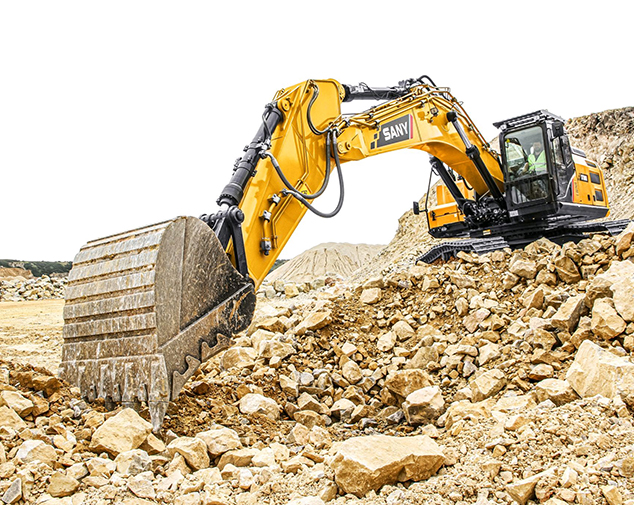

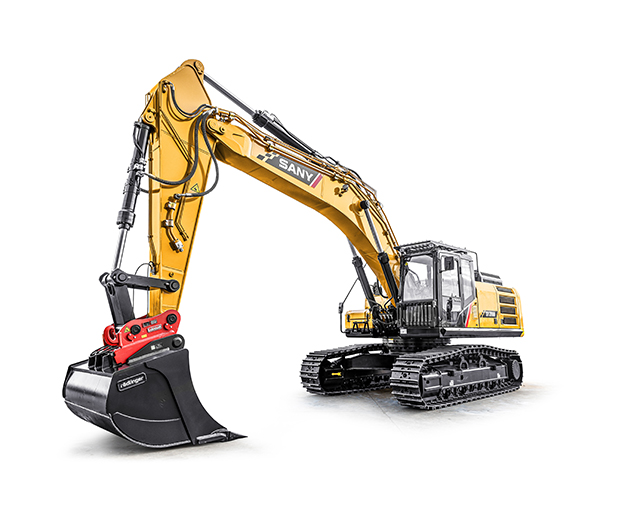

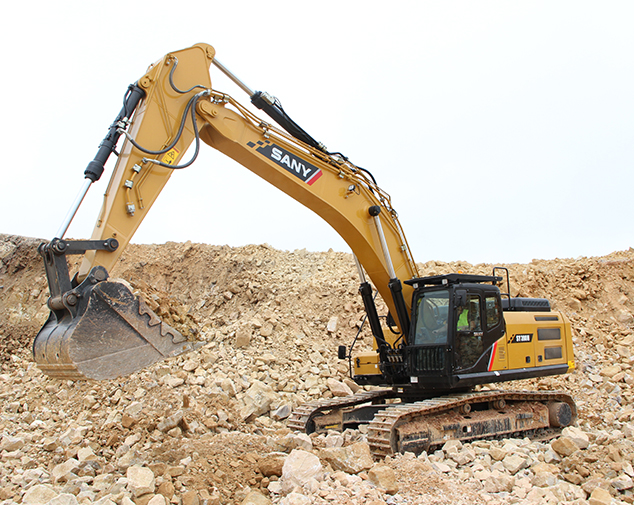

The SY390H includes a combination of safety features that work together to minimise risks to those people in and around the machine.
+ ROPS/TOPS certified cab for safe operation
+ Rear and side view camera for panoramic visibility
+ Travel alarm, green seat belt and rotating warning beacon to increase visibility, attract attention and ensure safety
+ LED work lights for maximum visibility in low light conditions
The operators cab of the SY390H has been designed down to enable comfortable, safe, fatigue-free operation
+ Ergonomic and fully adjustable, heated operator’s seat
+ Clear instrumentation and large high resolution colour display
+ Adjustable ventilation, heating and automatic climate control system
+ Integrated cooling box and large amount of storage space
+ Radio, speaker and USB port
+ Easy access to all maintenance points
+ Low maintenance requirements and longer service intervals
+ Ergonomic handrails and anti-slip tread surfaces allow safe access to the maintenance platform
+ Registered and protected with the CESAR Datatag Scheme (the premier initiative against equipment theft) and CESAR ECV for quick and easy verification of emissions category
+ SANY EVI telematics technology is used to monitor a wide
range of information relating to an individual machine or
an entire fleet. Data is gathered by the onboard controllers
on SANY machines to keep data transferring throughout the
day. If you have a mixed fleet with other OEMs, you can
easily access data for your SANY equipment and other brands
using a telematics API, together in one management system.
+ 5-year/5000 hour warranty as standard for complete peace of mind (Terms and Conditions apply)
|
DIMENSIONS
|
|
|
Overall length
|
11,430 mm
|
|
Overall width
|
3,190 mm
|
|
Overall width of superstructure
|
3,105 mm
|
|
Overall height above cab
|
3,490 mm
|
|
Overall height of boom
|
3,780 mm
|
|
Rear length
|
3,460 mm
|
|
Track width
|
2,590 mm
|
|
Undercarriage length
|
5,115 mm
|
|
Track link width
|
600 mm
|
|
Minimum ground clearance
|
570 mm
|
|
Tail swing radius
|
3,550 mm
|
|
Distance (centre) between crawler wheel and guide wheel
|
4,140 mm
|
|
Boom length
|
6,500 mm
|
|
Bucket arm length
|
2,600 / 3,200 mm
|
|
Bucket capacity
|
1.9 m3
|
|
|
|
WORKING RANGE
|
|
|
Max. horizontal reach on the ground
|
10,830 mm
|
|
Max. vertical reach
|
10,120 mm
|
|
Max. dumping height
|
7,490 mm
|
|
Min. slewing radius
|
4,180 mm
|
|
Max. excavation depth
|
7,125 mm
|
|
Max. height at min. slewing radius
|
8,830 mm
|
|
|
|
ENGINE
|
|
|
Model
|
CUMMINS QSL9 (Stage Ⅴ)
|
|
Max. torque
|
1526/1400 Nm/rpm
|
|
Displacement
|
8,900 ccm
|
|
|
|
HYDRAULIC SYSTEM
|
|
|
Main pumps
|
2x variable-piston-pump with electronic positive control
|
|
Maximum oil flow
|
2 x 352 l/min
|
|
Travel drive
|
Variable displacement axial piston motor
|
|
Slewing gear
|
Axial piston motor
|
|
|
|
PRESSURE LIMITING VALVE SETTINGS
|
|
|
Boom circuit
|
343 bar
|
|
Slewing circuit
|
310 bar
|
|
Drive circuit
|
343 bar
|
|
Pilot control circuit
|
39 bar
|
|
|
|
OUTPUT
|
|
|
Slewing speed
|
8.9 rpm
|
|
Slewing torque
|
133 kNm
|
|
Max. ground speeds
|
5.4 / 3.2 km/h
|
|
Max. traction force
|
320 kN
|
|
Climbing ability
|
70%*(35°)
|
|
ISO bucket breakaway force
|
235 kN
|
|
ISO arm tear-out force
|
184 kN
|
|
|
|
SERVICE REFILL CAPACITIES
|
|
|
Fuel tank
|
600 l
|
|
Max Fuel tank
|
2 x 352 l
|
|
Engine coolant
|
44.5 l
|
|
Engine oil
|
36 l
|
|
Travel drive (per side)
|
10 l
|
|
Hydraulic oil tank
|
415 l
|
|
|
|
|
DEMOLITION SPECIFICATION (SY390H-XD only)
|
|
|
Heavy duty belly plates
|
Standard equipment
|
|
Bucket ram guard
|
Standard equipment
|
|
Stick ram guard
|
Standard equipment
|
|
Boom hoist guards
|
Standard equipment
|
|
Bolt on side impact protection (3 piece)
|
Standard equipment
|
|
8 pre-settings for hydraulic attachments
|
Standard equipment
|
|
FOG guard bolt on cab protection (Level 2)
|
Standard equipment
|
|
|
