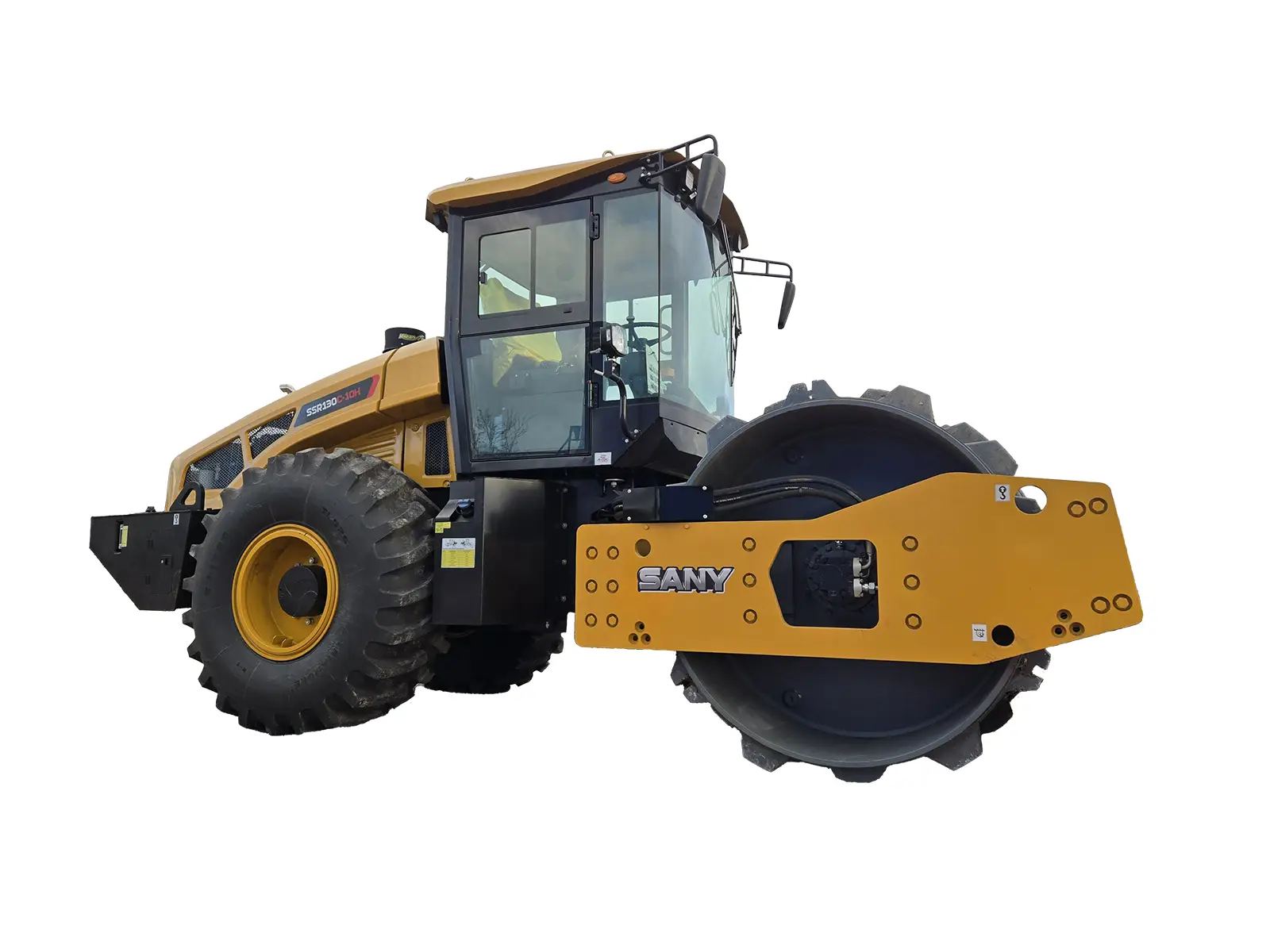

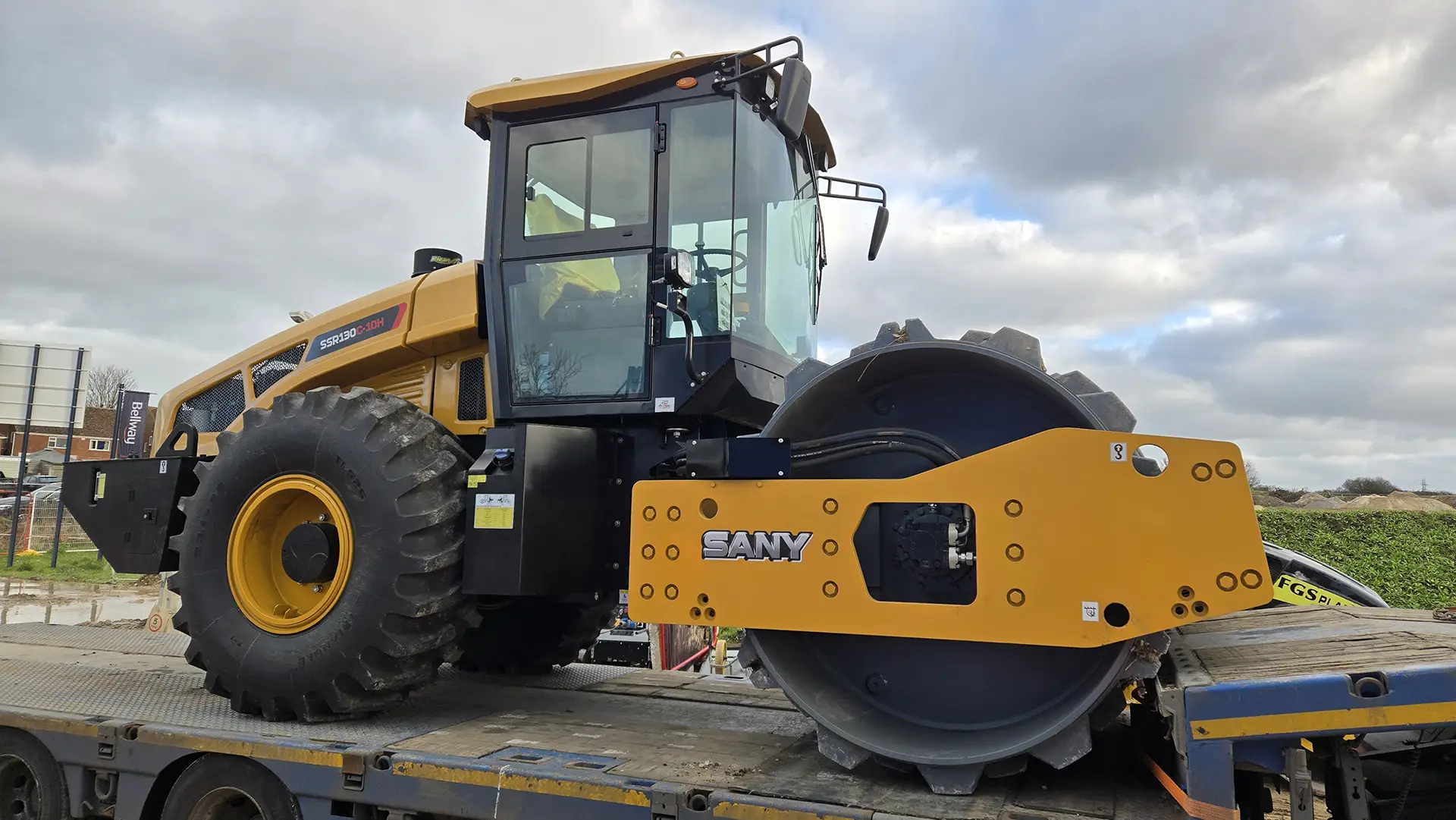

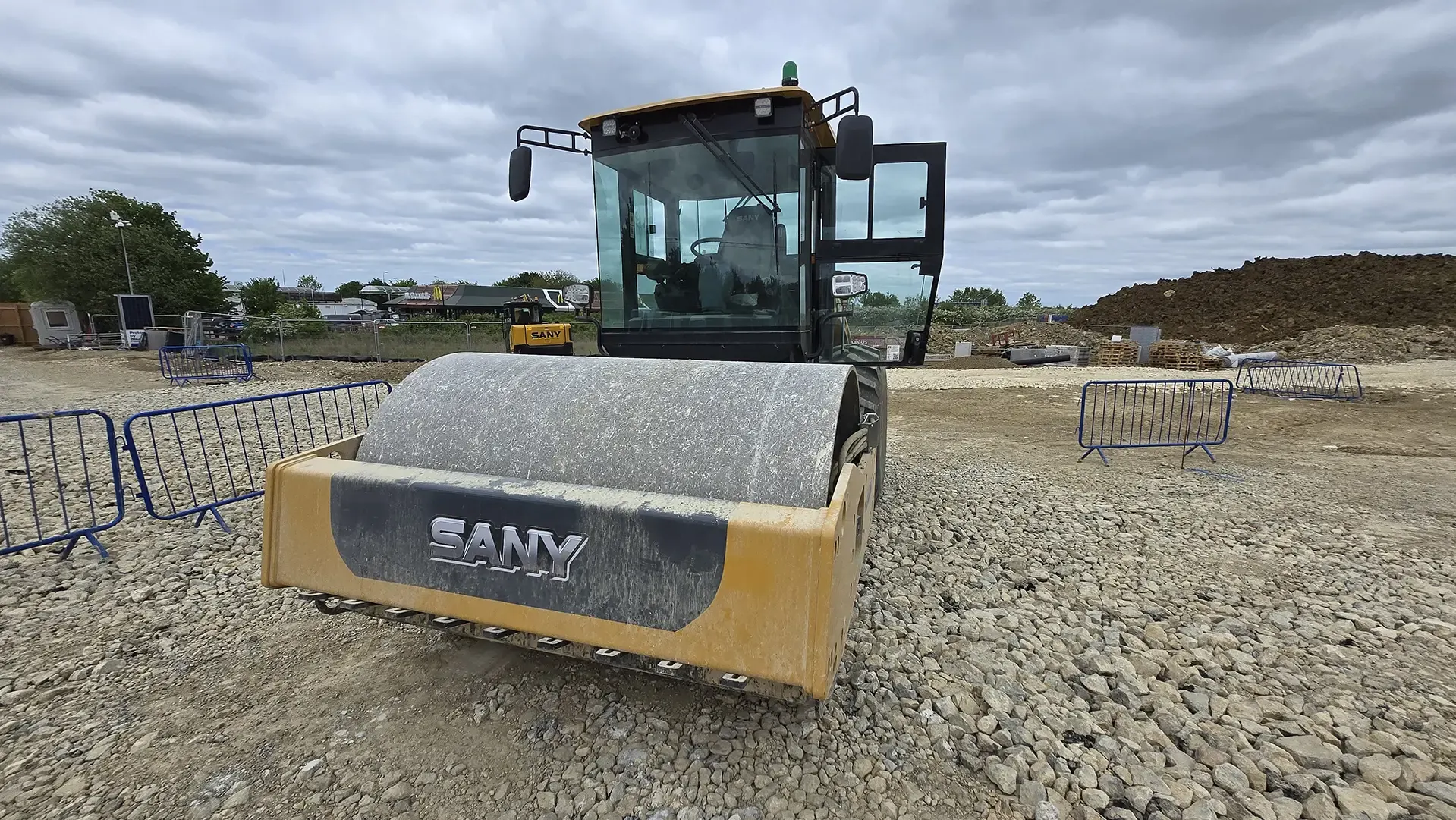

The SANY SSR130C-10H was designed as a true 13t roller with operator comfort in mind. With ECOstop and ECOmode as standard you can reduce fuel usage and emissions. Save as you roll with SANY!
– Smooth electronic travel levels
– LED work lights
– 500 hour service intervals
Interested in this machine?
Please complete the form below.
PERFORMANCE
Where efficiency and compaction performance are needed the SSR130C-10H delivers with no compromise.
+ Heavyweight compaction performance
+ Stage V, DEUTZ TCD4.1 engine with anti-long idle controls
+ Anti slip control that aids 50-55% gradeability
+ Danfoss hydraulic system and DANA axle for known performance
SAFETY
The SSR130C-10H is fully equipped for safe working.
+ ROPS/FOPS certified cab
+ Excellent visibility all around
+ Reversing camera as standard
+ Lockable battery isolator and emergency stop button
+ Reverse alarm, warning beacon and green seat belt beacon
OPERATOR COMFORT
Ease of use and flexibility make the SSR130C-10H a comfortable place to work.
+ Smooth electronic travel lever
+ Air suspension, multi adjust comfort seat

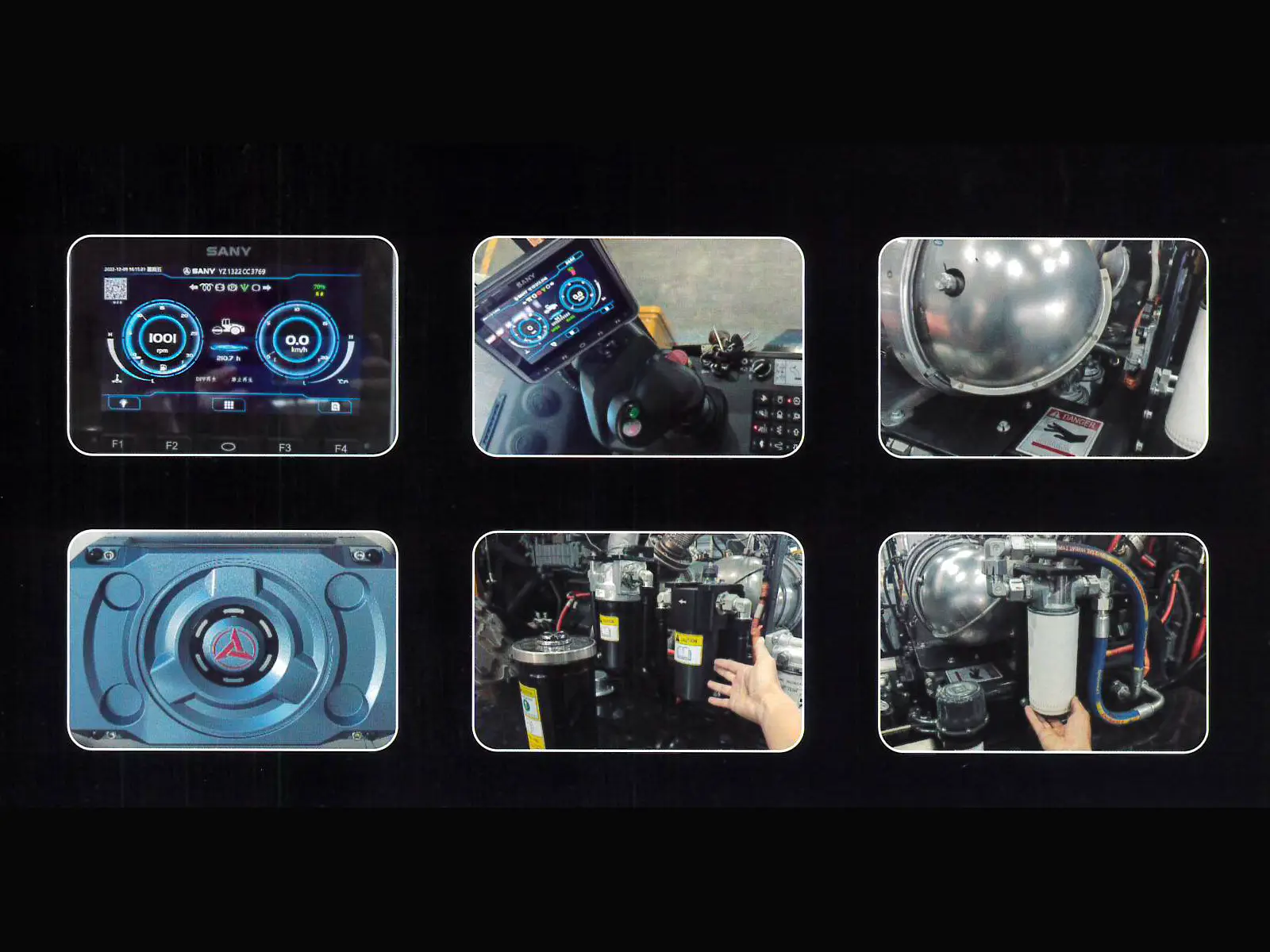

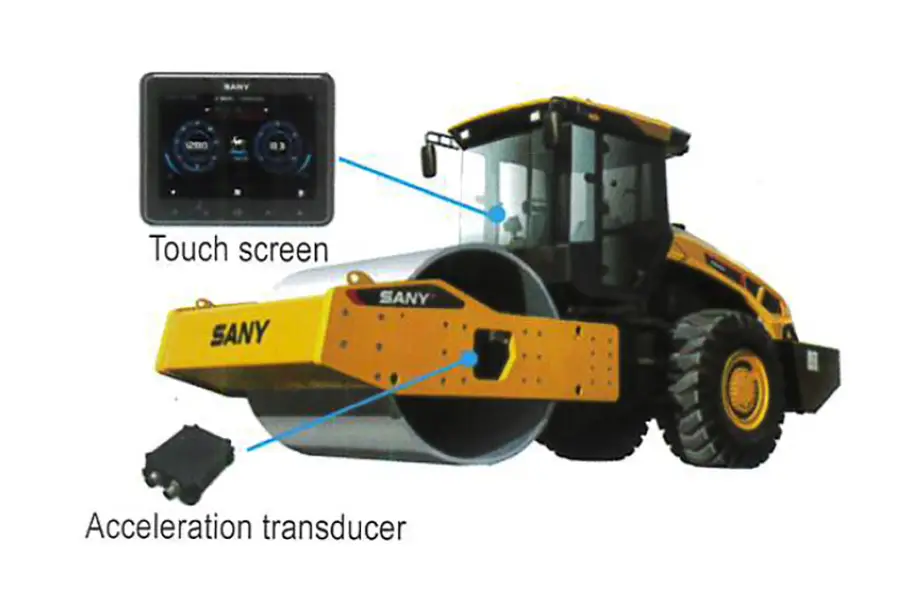

+ Clear 7-inch information display for simple and easy to use operation
+ Climate control
SERVICE
+ Maintenance free, bolted centre joint
+ 500 hour service intervals
SECURITY
+ EVI telematics
+ PIN code enabled ignition
WARRANTY
+ 5 year / 5000 hour warranty as standard for complete peace of mind (terms and conditions)
SPECIFICATIONS
| ENGINE | |
| Model | Deutz TCD 4.1 L4 |
| Rated power | 115 kW / 2,100 rpm |
| Emission | Stage V |
| LOAD | |
| Average static linear load | 3,357 kg/m |
| CAPACITIES | |
| Fuel tank | 220 l |
| Hydraulic oil tank | 80 l |
| OPERATING WEIGHT | 13,260 kg |
| PERFORMANCE PARAMETERS | |
| Steering angle | +35° |
| Swing angle | +12° |
| COMPACTION | |
| Vibration frequency | 30/35 Hz |
| Amplitude | 0.9/1.8 mm |
| Centrifugal force | 180/280 kN |
| Travel speed | 5-11.3 km/h |
| Gradeability (vibrate) | 50% |
| Gradeability (not vibrate) | 55% |

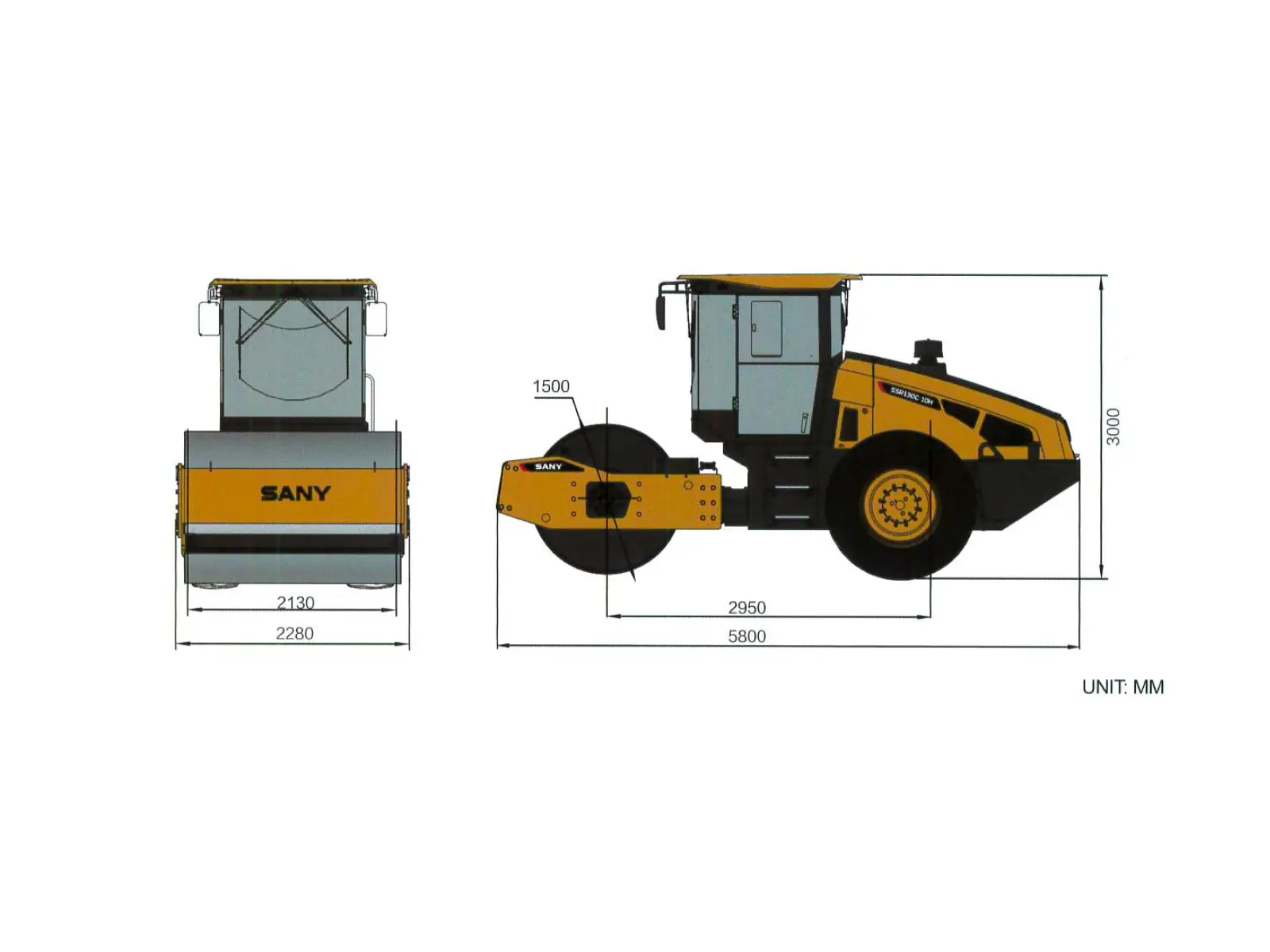

| DIMENSIONS | |
| Length | 5,775 mm |
| Width | 2,285 mm |
| Wheelbase | 2,950 mm |
| Height | 3,080 mm |
| Drum diameter | 1,500 mm |
| Drum width | 2,130 mm |
| Drum thickness | 25 mm |
| Ground clearance (minimum) | 450 mm |
