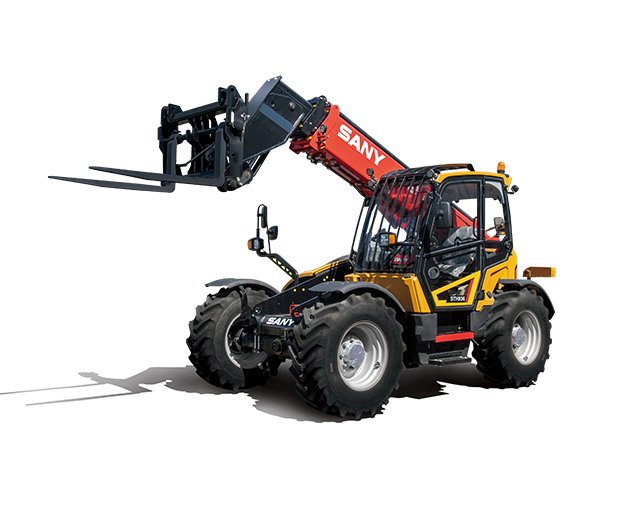

The STH936 is designed to offer the ultimate in safety, comfort and performance. Thanks to their compact and innovative design, SANY telehandlers are the ideal solution for demanding jobs and precision work, whether that’s easy loading, moving or stacking and their versatility is increased further due to their ability to use a wide variety of attachments.
– Stage V Deutz engine for superb performance and greater fuel efficiency
– Ergonomic operators space offering a wealth of features as standard, boosting safe operation
– 3 year warranty for complete peace of mind
Interested in this machine?
Please complete the form below.
PERFORMANCE
SANY telehandlers are designed and tested to ensure they provide the maximum in terms of reliability and operating hours.
+ Powerful 55 kW Deutz engine (without exhaust treatment) ensures optimum engine performance and low fuel consumption
+ Dana hydrostatic transmission for best application efficiency
+ Auxiliary venting for fast attachment changing
+ Three selectable steering modes (4WS, 2WS and Crab) for excellent manoeuvrability on site and faster travel speeds
+ Smooth, fast multi-functioning boom control with auto rpm
SAFETY
A comprehensive safety package is included as standard on all SANY telehandlers.
+ ROPS/FOPS fully certified cab for safe operation
+ Precise weight management system
+ Chassis levelling for safer lifting
+ Low boom profile for maximum visibility
+ Operator present seat switch and high-viz seatbelt
+ Integrated reversing camera, coupled with distance sensor
+ Reversing alarm and side and rear mirrors
+ LED work lights positioned on the cab and boom for low light working conditions
OPERATOR COMFORT
The operators cab of the telehandler series has been designed in Germany and is a highlight for any operator. It provides maximum comfort and pleasant working conditions due to numerous standard features.
+ Adjustable air-suspension seat
+ Inclinable and telescopic steering column for the perfect operating position
+ 10-inch touchscreen colour display with encoder control and intuitive user navigation
+ Quiet, low vibration engine (75 dB) so noise levels are kept to a minimum
+ Air-conditioning
+ Radio with Bluetooth and USB connector
+ Storage within the arm rest and cup and bottle holders
SERVICE
+ All maintenance and daily checks can be performed from ground level
+ Filters are centrally located for quick and easy access
+ Engine access is possible from three sides and the battery can be easily reached via an upwards-folding step under the cab
+ 500 hrs service intervals
SECURITY
+ Registered and protected with the CESAR Datatag Scheme (the premier initiative against equipment theft) and CESAR ECV for quick and easy verification of emissions category
WARRANTY
+ 3-year/3000 hour warranty as standard for complete peace of mind (Terms and Conditions apply)
SPECIFICATIONS
| ENGINE | |
| Model | Deutz TD 3.6L |
| Rated power | 55 kW / 2,600 rpm |
| Max. torque | 340 Nm/1,500 rpm |
| Battery | 12 V |
| HYDRAULIC SYSTEM | |
| Hydraulic pump type | Gear with priority valve |
| System pressure | 270 bar |
| Hydraulic flow | 95 l/min |
| OPERATING WEIGHT | 9,100 kg |
| PERFORMANCE PARAMETERS | |
| Maximum lift capacity | 3,600 kg |
| Lift capacity at maximum height | 1,000 kg |
| Lift capacity at maximum reach | 500 kg |
| Lift height | 9,600 mm |
| Carriage crowd angle | 45° |
| Carriage dump angle | 21° |
| Frame levelling +/- | N/A |
| Outside turning radius (4WS) | 3,850 mm |
| Auxiliary hydraulic flow | 60 l/min |
| Auxiliary hydraulic pressure | 27 MPa |
| Noise at driving position (55 kW) | 75 Lpa |
| Noise to environment (55 kW) | 83 Lwa |
| DIMENSIONS | |
| Length to front of carriage | 4,990 mm |
| Overall width | 2,350 mm |
| Height over cab without beacon | 2,540 mm |
| Height over cab with beacon | 2,665 mm |
| Wheelbase | 2,750 mm |
| Overall cabin width | 950 mm |
| Ground clearance | 400 mm |
| Overall width stabilisers fully deployed | N/A |
| Turning radius over tyres | 3,850 mm |
| Operating weight (with Forks) | 9,100 kg |
