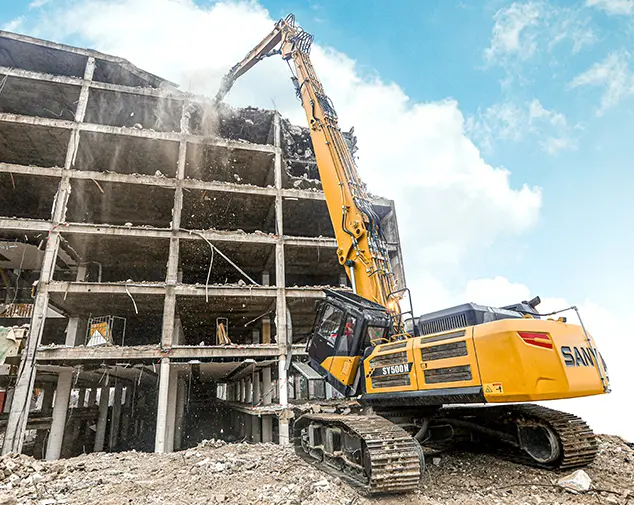

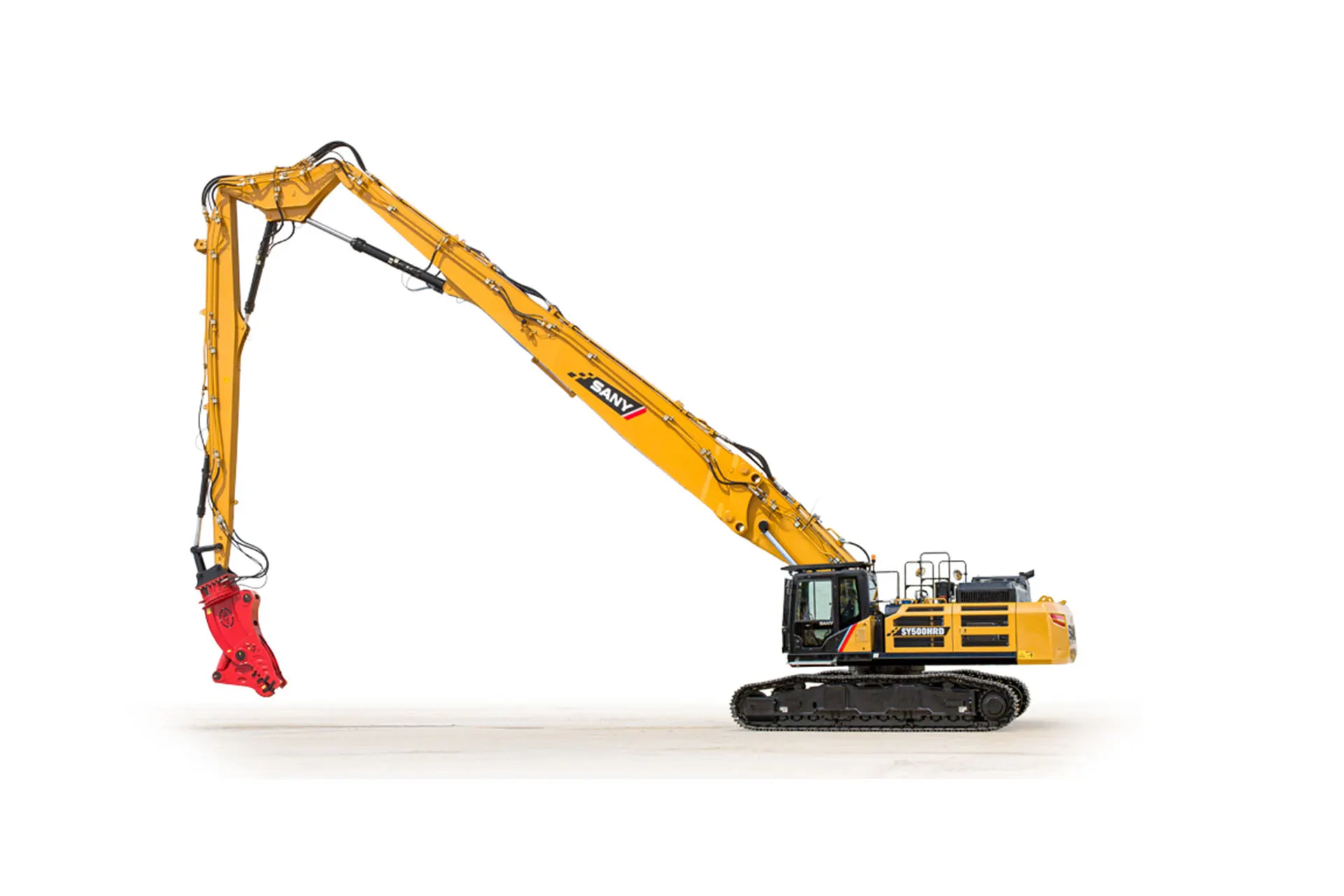

Designed for maximum productivity and endurance, the SANY SY500HRD impresses with its robust design and its versatility. With its extra-long boom, it takes the demolition tools to a whole new level. And, thanks to the hydraulically extendable chassis, it achieves outstanding stability, even when things get really tough.
– Powerful Stage V CUMMINS engine
– Telescopic chassis for optimum stability and high-reach 28m boom
– Tilting operator‘s cab for optimal visibility
– 5 year warranty for complete peace of mind
Interested in this machine?
Please complete the form below.
PERFORMANCE

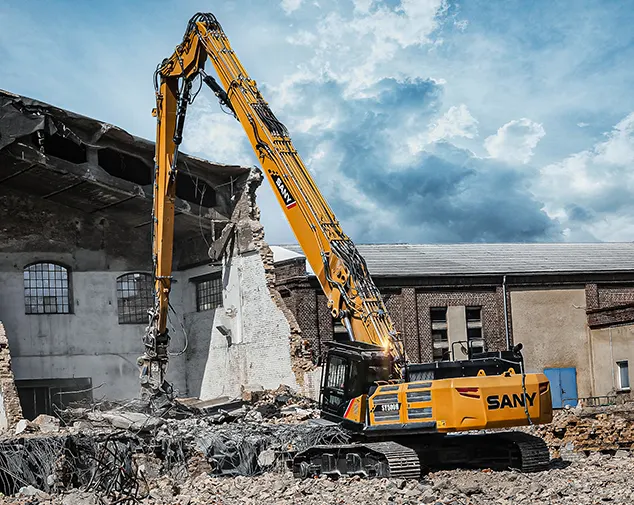

With its superior reach and wide chassis, the SY500HRD is a versatile demolition machine capable of outstanding stability on the toughest of job sites.
+ Wide, hydraulic telescopic chassis with an extremely stable and robust frame.
+ Increased operating range with long 28m boom
+ Stage V CUMMINS engine and smart hydraulic control system to maximise on fuel economy
+ 100% steel bodywork for maximum protection and reduced cost of ownership
SAFETY
Safety is always the highest priority when it comes to demolition work which is why the operators cab on the SY500HRD is extremely robust in accordance with the EU directive.
+ Tilting operators cab with for optimal visibility
+ Rear and side view camera for optimal visibility
+ Roof panel and windscreen, which are made from safety glass, are located behind protective grilles
+ Automatic range limitation, ensures that both people and the machine are protected as much as possible
+ LED work lights for maximum visibility in low light conditions
OPERATOR COMFORT
With the SANY SY500HRD operators can achieve maximum productivity in a comfortable environment.
+ Ergonomic, fully adjustable, heated operator’s seat
+ Clear instrumentation and large high resolution colour display
+ Adjustable ventilation, heating and automatic climate control system
+ Integrated cooling box and large amount of storage space
+ Radio, speaker and USB port
SERVICE
+ Easy access to all maintenance points
+ Low maintenance requirements and longer service intervals
+ Ergonomic handrails for safe access to the maintenance platform
SECURITY
+ Registered and protected with the CESAR Datatag Scheme (the premier initiative against equipment theft) and CESAR ECV for quick and easy verification of emissions category
WARRANTY
+ 5-year/5000 hour warranty as standard for complete peace of mind (Terms and Conditions apply)
SPECIFICATIONS
| DIMENSIONS | |
| Overall length | 200,000 mm |
| Overall width | 3,400 mm |
| Overall superstructure width | 3,292 mm |
| Overall height above cab | 3,476 mm |
| Overall height of boom | 3,800 mm |
| Rear length | 4,126 mm |
| Track width | 2,400/3,700 mm |
| Undercarriage length | 5,930 mm |
| Undercarriage width (dozer blade) | 3,200 mm |
| Track link width | 800 mm |
| Minimum ground clearance | 451 mm |
| Tail swing radius | 4,126 mm |
| Distance between crawler wheel and guide wheel | 5,000 mm |
| WEIGHT | |
| Operating weight | 64,000 kg |
| ENGINE | |
| Manufacturer | Cummins |
| Model | Cummins QSX12 |
| Rated power | 298 kW |
| Max. torque | 2,034 Nm |
| Displacement | 11.8 l |
| Exhaust emissions | Stage V |
| Batteries | 24 v |
| HYDRAULIC SYSTEM | |
| Max. 0il flow | 2 x 360 l/min |
| RELIEF VALVE SETTING | |
| Boom circuit | 34.3 MPa |
| Slewing circuit | 26.9 MPa |
| Drive circuit | 34.3 MPa |
| Pilot control circuit | 39 MPa |
| SERVICE REFILL CAPACITIES | |
| Fuel tank | 680 l |
| Engine coolant | 49.19 l |
| Engine oil | 34 l |
| Travel Drive (per side) | 15 l |
| Hydraulic oil tank | 500 l |
| PERFORMANCE | |
| Swing speed | 6 rpm |
| Travel speed (Low/High) | 5.0/3.0 km/h |
| Max. travel force | 320 kN |
| Gradeability | 10° |
| Bucket digging force ISO | 253 kN |
| Arm digging force ISO | 170 kN |
| Boom length | 15,200 mm |
| Arm length | 8,500 mm |
| Bucket capacity | 2.2 m³ |
| WORKING RANGE | |
| Max. horizontal reach on the ground | 12,440 mm |
| Max. excavation depth | 7,230 mm |
| Max. vertical reach | 12,710 mm |
| Max. dumping height | 7,590 mm |
| Min. slewing radius | 4,670 mm |
| Max. excavation depth, vertical wall | 6,315 mm |
| Max. height at min. slewing radius | 10,330 mm |
