Power, Durability and Strength.

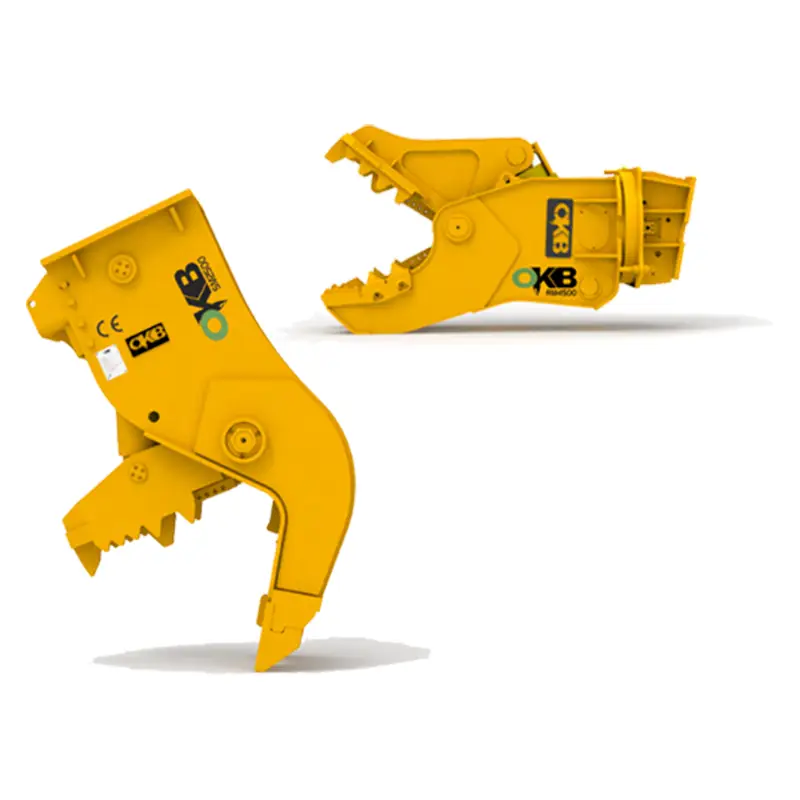

Our rotating pulveriser is a universal tool designed for primary demolition, secondary concrete reduction and material processing. The static pulveriser is ideal for efficiently separating rebar from concrete in the secondary reduction stage.

  • Designed to crush concrete, with the bonus of a steel shear incorporated in the rear of the jaws.
  • Interchangeable wear parts for easy installation on site.
  • Speed valve comes as standard (in both the rotating and static versions) enabling faster working and improved efficiency.

Applications

  • Primary and secondary demolition.
  • Concrete pulverising and recycling.
  • Material processing and separation.

Interested in this machine?

Please complete the form below.

We are committed to protecting your privacy. We will never collect information about you without your explicit consent.

This site is protected by reCAPTCHA

Rotating Pulverisers Specifications

Model Unit RM350 RM1000 RM2500 RM4000 RM4500
Carrier t 5-12 10-16 16-22 24-35 36-50
Weight Kg 565 1100 1680 2850 4100
Max operating pressure Bar 300 350 350 350 350
Oil Flow l/min 50-100 100-180 150-250 200-320 250-380
360° rotation Bar 140 160 160 160 160
l/min 25-30 25-30 30-35 30-35 30-35
Jaw opening (0) mm 500 700 780 1050 1160
Force at upper tips kN 200 435 530 880 1000
Force in the middle kN 330 645 810 1125 1610
Cutting blade length mm 120 180 180 180 250
Width (W) mm 280 410 485 550 630
Height (H) mm 1690 1760 2190 2670 2950

Static Pulverisers Specifications

Model Unit SM350 SM1000 SM2500 SM4000
Carrier t 5-9 10-18 18-25 30-45
Weight Kg 360 1010 1750 2700
Oil Flow l/min 50-100 100-180 150-250 220-320
Max operating pressure Bar 220 350 350 350
Jaw opening (0) mm 500 700 860 1050
Force at upper tips kN 200 400 480 876
Force in the middle kN 330 580 720 1120
Cutting blade length mm 120 180 180 180
Width (W) mm 280 450 520 590
Height (H) mm 1270 1760 2090 2690
