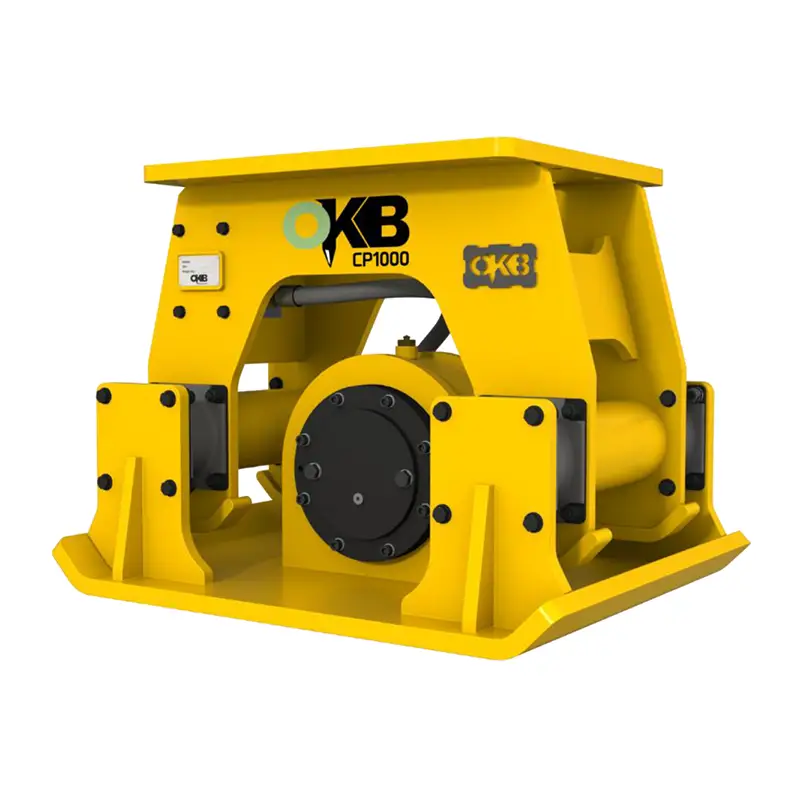

Power, Durability and Strength.

These hydraulic compactors offer an effective and reliable tool for compacting material in trenches and on embankments as well as levelling ground.

Integrated relief valve prevents overloading.
Shock mounts improve the force distribution so reducing the strain on the carrier.
Oil splash lubrication removes the need for manual lubrication.
No drain line required.

Applications

Utilities and road maintenance.
Trenching and building embankments.
Post driving, sheet piling and other form works.

Interested in this machine?

Please complete the form below.

Concrete Crackers Specifications

Unit t Kg mm mm vpm l/min bar

Model	CP200	CP350	CP1000	CP4000
Carrier weight class	3-7	5-15	12-25	20-45
Operating weight	210	353	794	1282

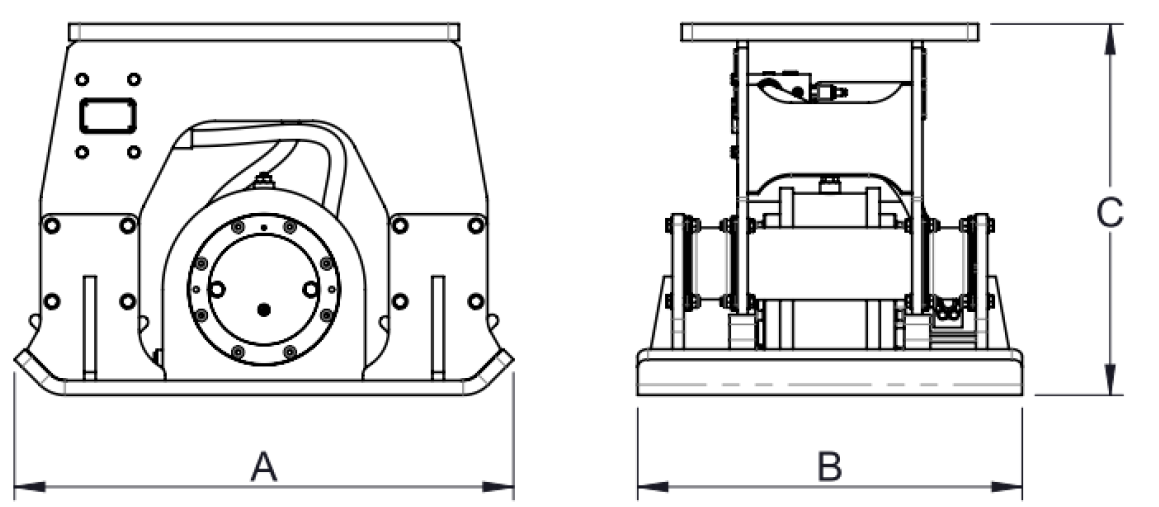

Base plate (A x B)	700 x 410	850 x 610	960 x 740	1253 x 860
Height without bracket (C)	506	558	696	803
Vibration frequency	2100	2100	2100	2100
Oil flow rate	42-80	78-125	100-230	147-277
Max operating pressure	172	152	172	172
