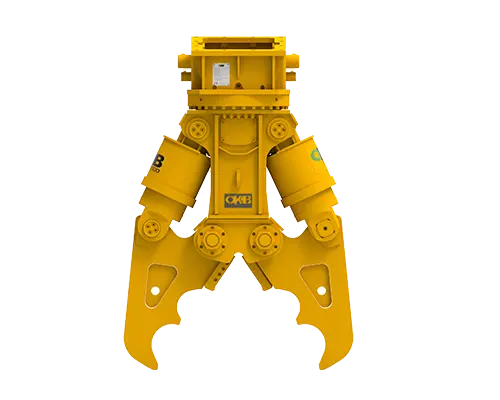

Concrete Crackers
Sales & Availability
Contact our sales specialists today to discuss purchase options, competitive plant finance, or aftersales service support across the UK.
Simon Richards 07939 958 794
Lee Perry 07939 277 508
Matt Scymanski 07484 531 608
Email us
sales@fitzgeraldplant.co.uk
Power, Durability and Strength.
These hydraulic concrete crackers are ideal for primary demolition of wide reinforced concrete structures, on carriers from 10t – 50t.
- 360° rotation for precision and control.
- reinforced cutter blade for rebar cutting.
- increased productivity resulting from the high-speed jaw opening and closing.
- wide jaw opening.
- Twin rams for balance and almost constant cracking power.
Applications
- Designed for primary demolition.
- Demolition using high reach machines.
- Wide jaw opening enables use on concrete pile demolition.
Interested in this machine?
Please complete the form below.
Concrete Crackers Specifications
| Model | Unit | CR1000 | CR1500 | CR2500 | CR4000 | CR4500 |
| Carrier | t | 10-18 | 16-22 | 21-30 | 30-40 | 40-50 |
| Weight | Kg | 1150 | 1650 | 2100 | 2800 | 3800 |
| Max Operating Pressure | Bar | 350 | 350 | 350 | 350 | 350 |
| Oil Flow | l/min | 120-220 | 150-280 | 180-320 | 220-380 | 220-380 |
| 360° rotation | Bar | 160 | 160 | 160 | 160 | 160 |
| l/min | 25-30 | 30-35 | 30-35 | 30-35 | 30-35 | |

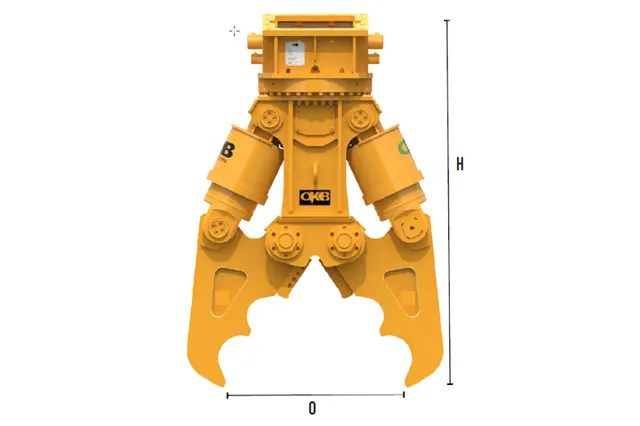

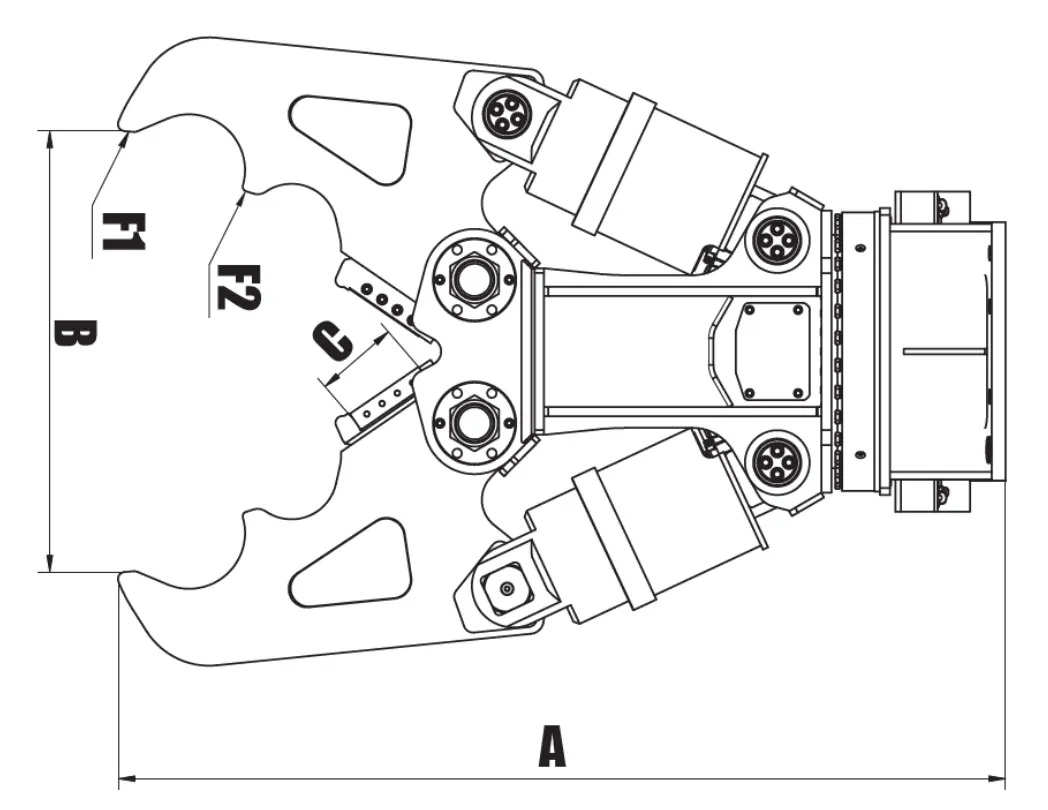

| Max Jaw Opening (0) | mm | 900 | 950 | 1100 | 1200 | 1600 |
| Force at upper tips | kN | 520 | 650 | 785 | 1035 | 1254 |
| Force in the middle | kN | 790 | 950 | 1280 | 1580 | 1926 |
| Cutting blade length | mm | 180 | 180 | 180 | 210 | 210 |
| Height (H) | mm | 1290 | 1980 | 2120 | 2260 | 2480 |
